The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the D2822-42 is designed to withstand high-vibration environments, but it's recommended to follow Harwin's guidelines for vibration testing and to consult with their technical support team for specific application guidance.
The maximum operating temperature range for the D2822-42 is -40°C to +125°C, but it's recommended to consult the datasheet and Harwin's technical support team for specific application guidance.
Yes, the D2822-42 is compatible with lead-free soldering processes, but it's recommended to follow Harwin's guidelines for soldering and to consult with their technical support team for specific application guidance.
The recommended cleaning process for the D2822-42 involves using a soft brush and a mild detergent, followed by a thorough rinse with deionized water and drying with a soft cloth. Avoid using harsh chemicals or abrasive materials that may damage the connector.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2822-42 Overview

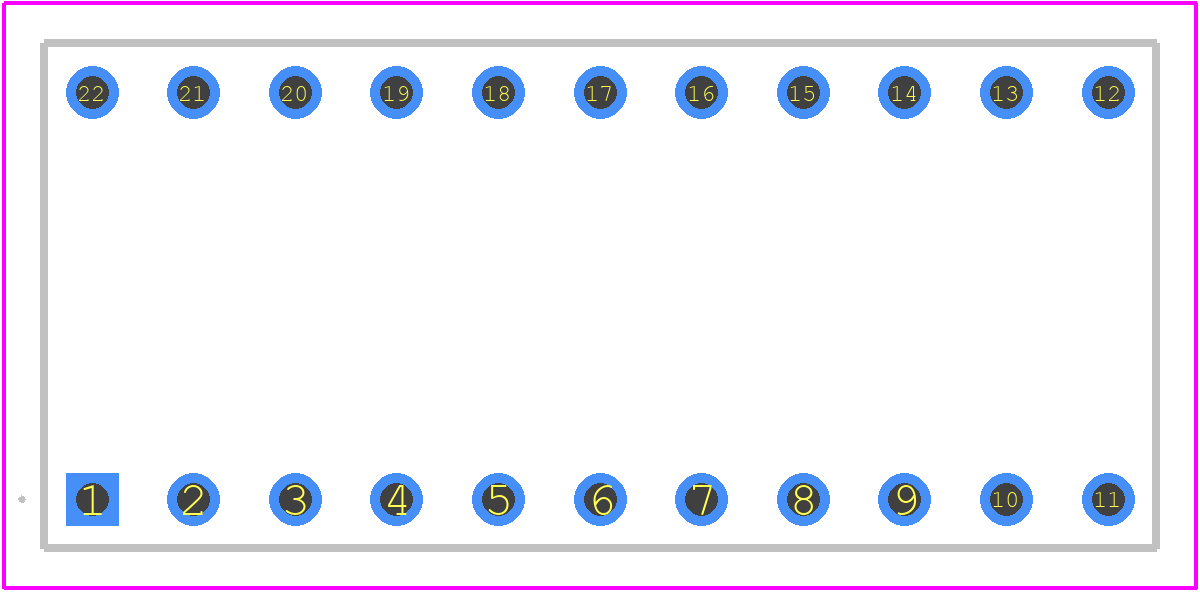

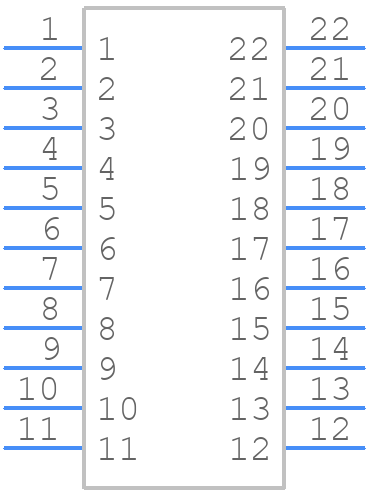

Use the download button to access the D2822-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2822,
or try a keyword search, such as Sockets and Chip Carriers
