The recommended torque for the screw threads of the D2828-42 connector is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the D2828-42 connector is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and screw torque to maintain the connector's integrity.
The D2828-42 connector is designed to operate in a temperature range of -40°C to +125°C and can withstand humidity up to 95%. However, it's crucial to consider the specific environmental conditions of your application and consult with Harwin's technical support if necessary.
The D2828-42 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
While the D2828-42 connector is optimized for AWG 24-30 wire sizes, it's possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. Consult with Harwin's technical support to determine the suitability of the connector for your specific wire size requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2828-42 Overview

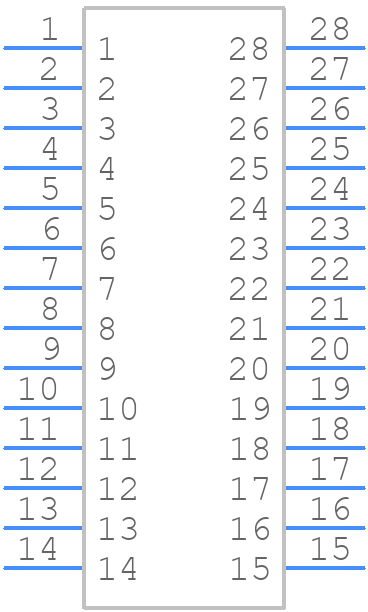

Use the download button to access the D2828-42 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like D2828,
or try a keyword search, such as Sockets and Chip Carriers
