The recommended torque for the screw locks on the D2832-42 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
Yes, the D2832-42 connector is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
The operating temperature range of the D2832-42 connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
Yes, the D2832-42 connector is designed to be resistant to harsh environments, with a rating of IP67 (dust and water ingress protection) and resistance to a range of chemicals, including salt spray and fuel.
The D2832-42 connector is rated for a maximum current of 3A per contact, making it suitable for use in low-to-moderate current applications. For higher current applications, a different connector may be required.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2832-42 Overview

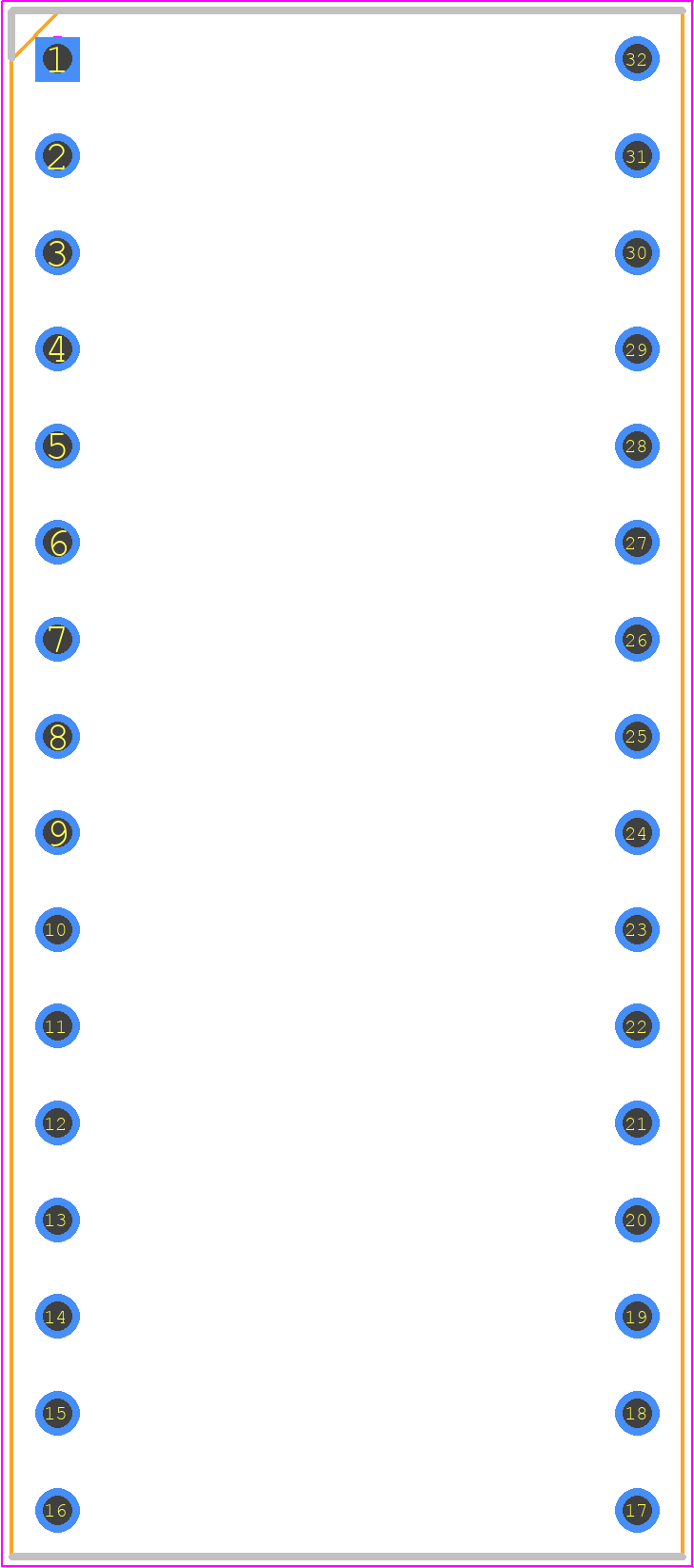

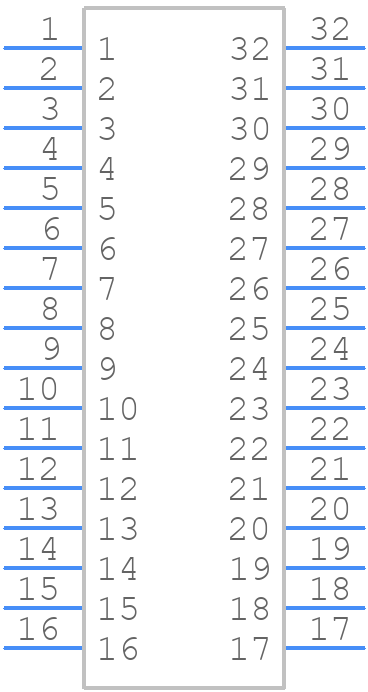

Use the download button to access the D2832-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2832,
or try a keyword search, such as Sockets and Chip Carriers
