The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the D2840-42 is designed to withstand high-vibration environments, but it's recommended to follow Harwin's guidelines for vibration testing and to consult with their technical support team for specific application requirements.
The maximum operating temperature for the D2840-42 is 125°C, but it's recommended to derate the connector's performance at temperatures above 100°C.
Yes, the D2840-42 is designed to meet the requirements of IEC 60529 IP67, which means it can withstand exposure to salt spray and humidity, but it's recommended to follow Harwin's guidelines for environmental testing and to consult with their technical support team for specific application requirements.
The recommended mating cycle for the D2840-42 is 500 cycles, but this can vary depending on the application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D2840-42 Overview

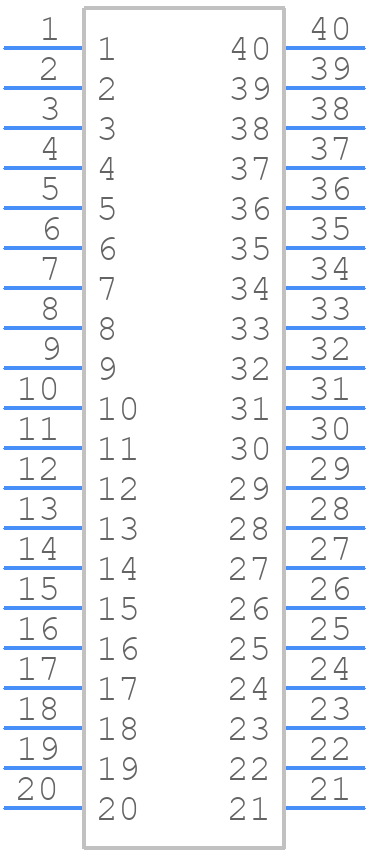

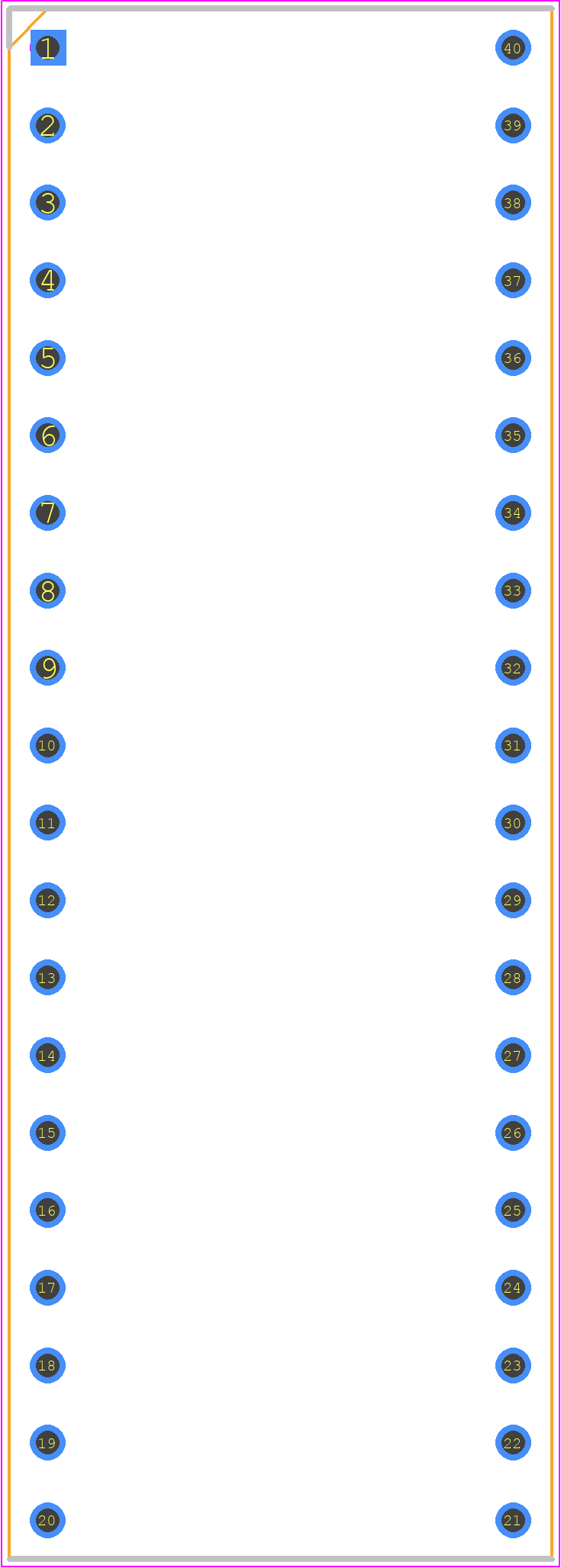

Use the download button to access the D2840-42 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like D2840,
or try a keyword search, such as Sockets and Chip Carriers
