D2W202F - CRYDOM

Description: SOLID STATE RELAY, 2A, 3V-32VDC, TH; Contact Configuration:SPST-NO; Load Current:2A; Operating Voltage Max:280Vrms; Relay Mounting:Through Hole; Relay Terminals:Solder; Switching Mode:Zero Crossing; Operating Voltage Min:24Vrms RoHS Compliant: Yes

Download D2W202F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

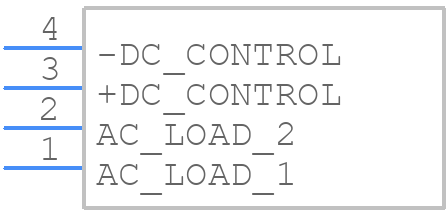

D2W202F - CRYDOM - PCB symbol
click to zoom
PCB Footprints
D2W202F - CRYDOM PCB footprint - Other - Other - D2W202F-1
click to zoom
3D Models
D2W202F - CRYDOM - 3D model - Other - D2W202F-1
click to zoom

D2W202F Details

  • Manufacturer Part Number:

    D2W202F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SIP-4

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    WITH ZERO CROSS OVER CIRCUIT, UL RECOGNIZED

  • Control Current:

    0.003 A

  • Control Voltage:

    3 V

  • Input Type:

    DC

  • Isolation Voltage-Max:

    4000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    2 A

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    Triac

  • Overall Height:

    30 mm

  • Overall Length:

    43 mm

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

D2W202F Frequently Asked Questions (FAQs)

  • The D2W202F can handle surge currents up to 100A for 10ms, but it's recommended to derate the current to 80A for continuous operation.
  • The D2W202F requires a heat sink with a thermal resistance of 1°C/W or less. Ensure good thermal contact between the device and heat sink, and maintain a maximum junction temperature of 125°C.
  • Use a minimum of 14 AWG wire for connections to the D2W202F to minimize voltage drop and ensure reliable operation.
  • Yes, the D2W202F is designed to withstand vibrations up to 10G, but ensure proper mounting and secure connections to prevent damage or disconnection.
  • Use a TVS (Transient Voltage Suppressor) diode or a varistor in parallel with the D2W202F to protect it from voltage transients and spikes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D2W202F Overview

Use the download button to access the D2W202F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D2W20, or try a keyword search, such as Solid State Relays
