D3002 - TE Connectivity

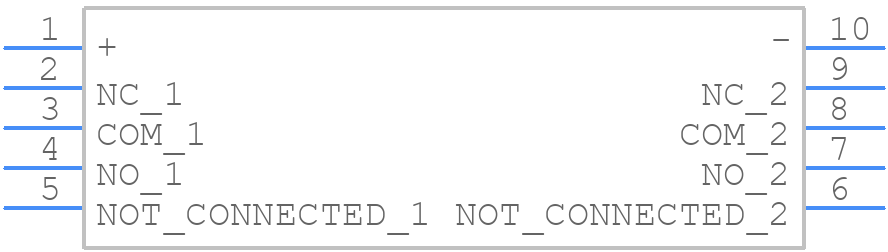

D3002 Details

• Manufacturer Part Number:

  D3002

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  RELEASE TIME WITH DIODE IN PARALLEL

• Body Breadth:

  9 mm

• Body Height:

  5 mm

• Body Length or Diameter:

  14 mm

• Coil Current(DC)-Max:

  0.012 A

• Coil Operate Voltage(DC):

  8.4 V

• Coil Power:

  140 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  1028 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  62.5VA@250VAC

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Power Rating R Load:

  60W@220VDC

• Contact (DC) Max Rating R Load:

  2A@125VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  125 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insertion Loss-Max:

  -0.25 dB

• Insulation Resistance:

  1000000000 Ω

• Isolation-Max:

  -22.3 dB

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  10

• Operate Time:

  9 ms

• Operating Frequency-Max:

  900 MHz

• Operating Frequency-Min:

  100 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  14mm x 9mm x 5mm

• Reference Standard:

  CECC; CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  RF RELAY

• Release Time:

  9 ms

• Sealing:

  IP67

• Surface Mount:

  NO

• Switching Time:

  18 ms

• Terminal Length:

  0.003200406400812802 inch

• Termination Type:

  SOLDER

• VSWR:

  1.07
