D369-G33-BP4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

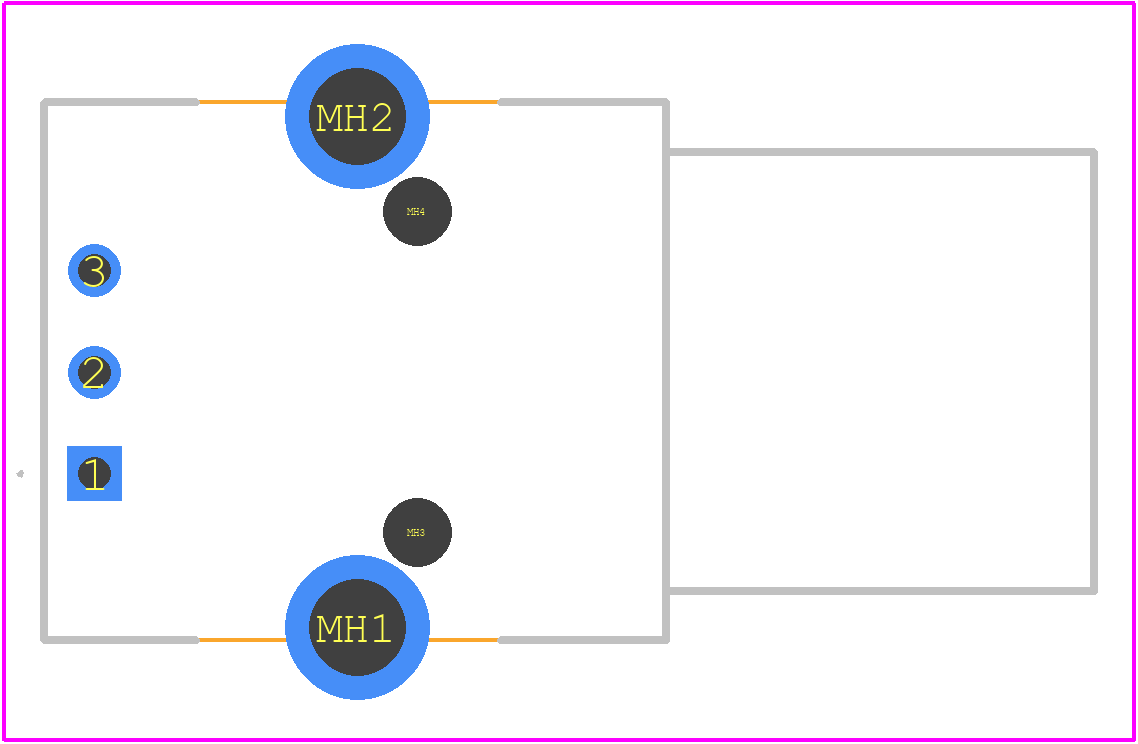

D369-G33-BP4 - TE Connectivity PCB footprint - Other - Other - D369-G33-BP4-7

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for D369-G33-BP4
Part Number D369-G33-BP4
Manufacturer TE Connectivity
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - D369-G33-BP4-7
Released Date Nov 17, 2022
Last Modified Date Dec 15, 2024 11:20 PM UTC
Pinout / Pin List Click Here (Member Only)

D369-G33-BP4 Details

Manufacturer Part Number:
D369-G33-BP4
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
14 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
7.75
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLUE
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mains Connector Rating:
5A
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
5 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
6

D369-G33-BP4 Frequently Asked Questions (FAQs)

The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals, but it's always best to consult the TE Connectivity application notes for specific guidance.
Yes, the D369-G33-BP4 is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
The maximum operating temperature for the D369-G33-BP4 is 125°C (257°F), but it's recommended to consult the datasheet for specific temperature ratings and derating information.
While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to stick with the recommended wire gauge specified in the datasheet.
Yes, the connector is designed to be environmentally sealed and can withstand outdoor use, but it's essential to ensure proper installation, sealing, and protection from extreme weather conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

D369-G33-BP4 Overview

Use the download button to access the D369-G33-BP4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like D369-, or try a keyword search, such as Combination Line Connectors
