D369-G66-BP4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

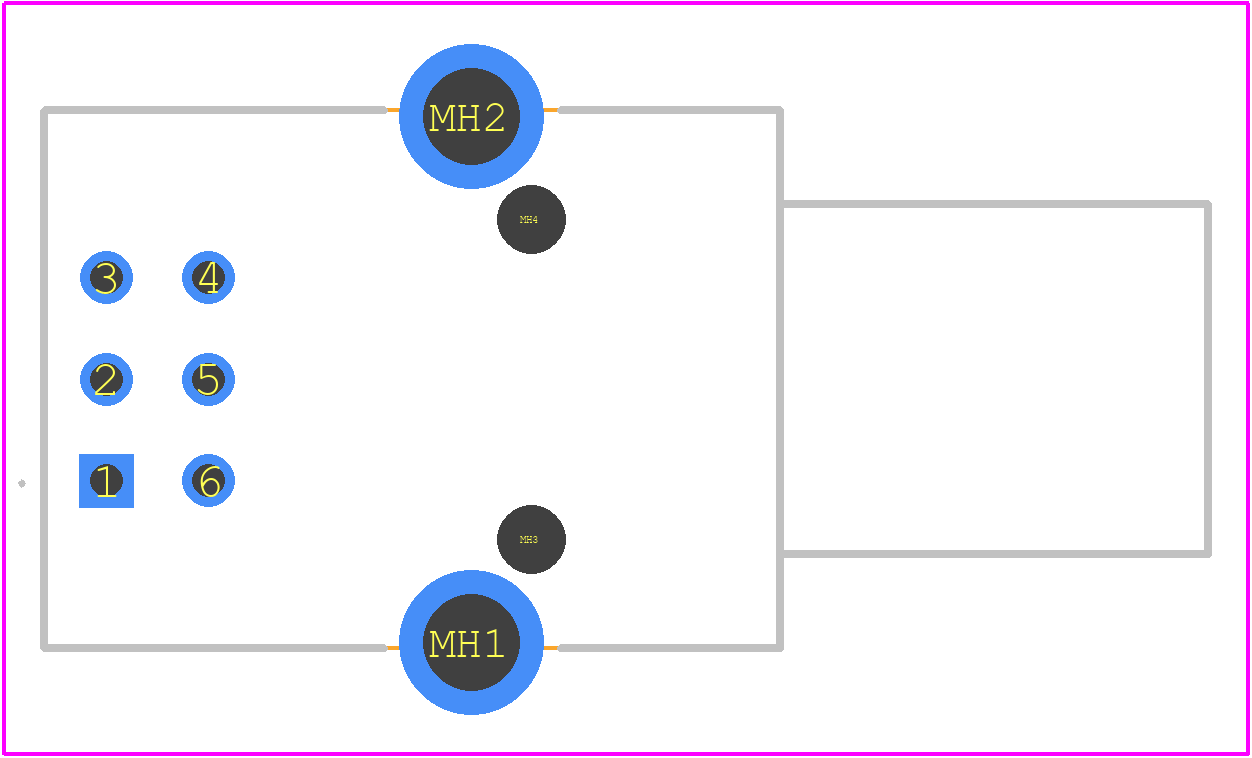

PCB Footprints

D369-G66-BP4 - TE Connectivity PCB footprint - Other - Other - D369-G66-BP4-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for D369-G66-BP4
Part Number D369-G66-BP4
Manufacturer TE Connectivity
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - D369-G66-BP4-5
Released Date Nov 29, 2021
Last Modified Date Dec 15, 2024 11:20 PM UTC
Pinout / Pin List Click Here (Member Only)

D369-G66-BP4 Details

Manufacturer Part Number:
D369-G66-BP4
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks, 2 Days
Manufacturer:
TE Connectivity
YTEOL:
7.75
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Pattern:
RECTANGULAR
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLUE
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mains Connector Rating:
5A
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
5 A
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
6

D369-G66-BP4 Frequently Asked Questions (FAQs)

The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals, but it's always best to consult the TE Connectivity application notes for specific guidance.
Yes, the D369-G66-BP4 is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to follow proper mounting and installation procedures to ensure reliability.
The maximum operating temperature for the D369-G66-BP4 is 125°C (257°F), but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
The D369-G66-BP4 has a IP67 rating, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's crucial to follow proper sealing and installation procedures to maintain the IP67 rating.
While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to follow the recommended wire gauge specifications to ensure optimal performance.
