Diodes Incorporated recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 150°C) and consider derating the device's power dissipation. Additionally, ensure good thermal design, and consider using a heat sink or thermal interface material to reduce junction temperature.
The maximum allowable voltage stress on the D60V0L4B10LP-7 is 60V, as specified in the datasheet. Exceeding this voltage may lead to device damage or failure. It's essential to ensure that the device operates within the recommended voltage range to maintain reliability and performance.
To prevent ESD damage, handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is stored in a protective package, and follow proper assembly and handling procedures to minimize the risk of ESD damage.
Diodes Incorporated recommends soldering the D60V0L4B10LP-7 using a peak temperature of 260°C (500°F) for a maximum of 10 seconds. Ensure that the soldering process is done in a controlled environment, and follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D60V0L4B10LP-7 Overview

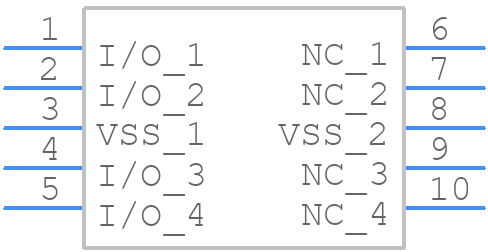

Use the download button to access the D60V0L4B10LP-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D60V0,
or try a keyword search, such as Transient Suppressors
