Description:The SH7751R is a 32-bit RISC (reduced instruction set computer) microprocessor, featuring a built-in PCI bus controller compatible with PCs and multimedia devices. & It includes the SH-4 CPU, which at the object code level is upwardly compatible with the SH-1, SH-2, and SH-3 microcomputers. The SH7751R has an instruction cache, an operand cache that can be switched between copy-back and write-through modes, a 4-entry full associative instruction TLB (table look aside buffer), and MMU (memory management unit
Renesas provides a reference design guide and thermal design guide for the D6417751RBA240HVU0. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal management. Additionally, consider using thermal vias, thermal pads, and heat sinks to dissipate heat effectively.
To ensure EMC and reduce EMI, follow Renesas' guidelines for PCB layout, component placement, and shielding. Use a multi-layer PCB with a solid ground plane, and consider adding EMI filters or shielding components. Also, ensure that your design meets the relevant EMC standards and regulations.
Renesas provides a recommended power-up and power-down sequence in the datasheet. It's essential to follow this sequence to prevent damage to the device and ensure reliable operation. Additionally, consider adding power sequencing and reset circuitry to ensure a clean power-up and power-down process.
Renesas provides a secure boot mechanism and firmware update guidelines for the D6417751RBA240HVU0. Implement a secure boot process using the device's built-in security features, such as secure boot keys and digital signatures. For firmware updates, use a secure communication protocol and ensure that the update process is authenticated and encrypted.
The D6417751RBA240HVU0 has a maximum junction temperature of 125°C. Ensure that your design provides adequate heat dissipation and thermal management. Also, consider the power consumption of the device and ensure that your power supply can provide the required current and voltage. Use the datasheet and Renesas' power consumption guidelines to estimate the power requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D6417751RBA240HVU0 Overview

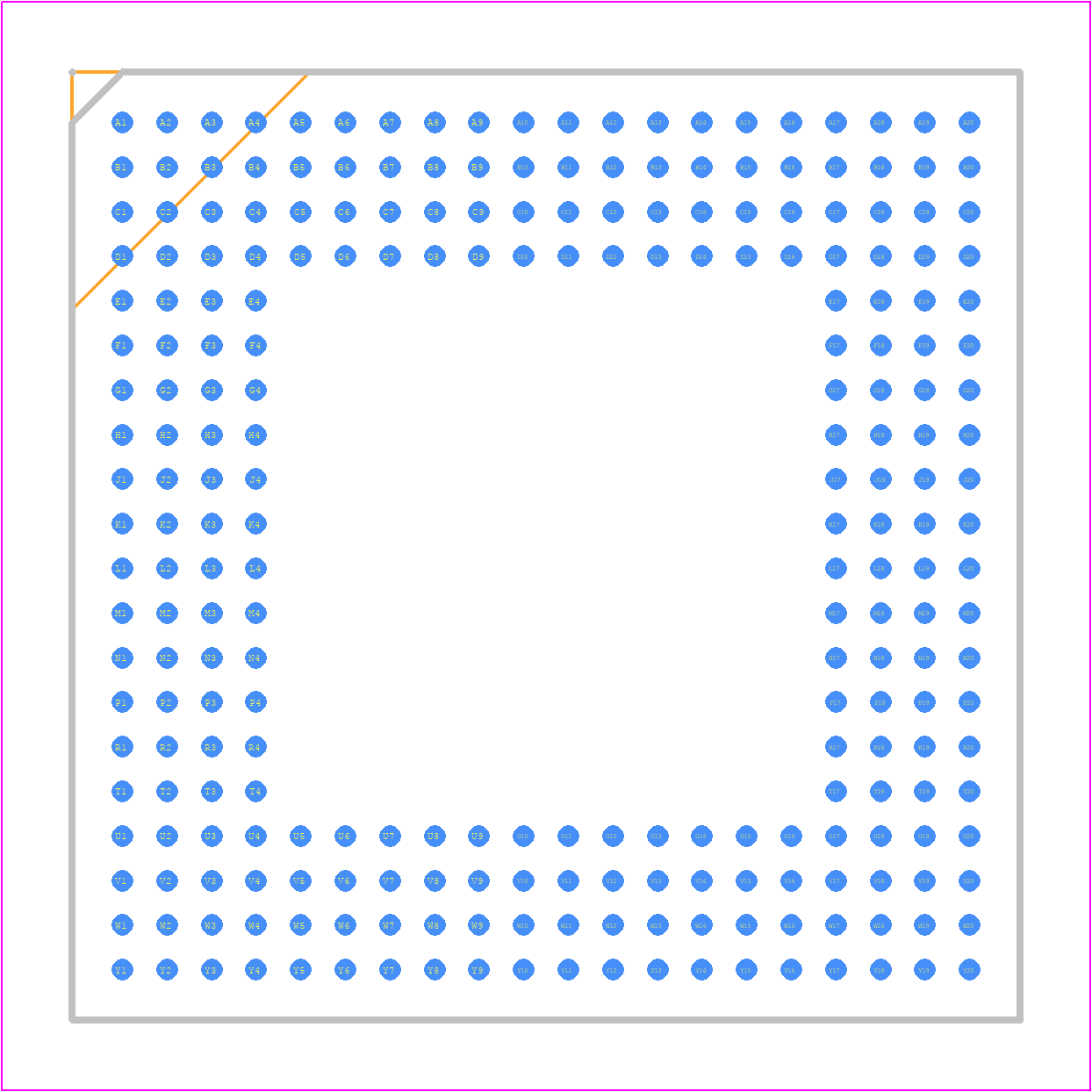

Use the download button to access the D6417751RBA240HVU0 schematic symbol, PCB footprint, and 3D model.
