D6R30F2LFS - LITTELFUSE

Description: Pushbutton Switches Key Switch N.O. SPDT 100 mA

Download D6R30F2LFS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this D6R30F2LFS model

Email notifications will be applied after download.

Send part feedback

Symbol

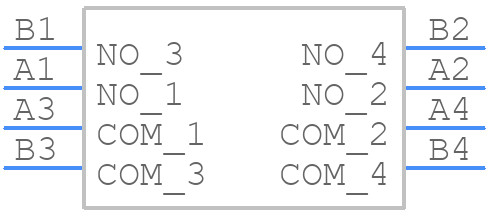

D6R30F2LFS - LITTELFUSE - PCB symbol

PCB Footprints

D6R30F2LFS - LITTELFUSE PCB footprint - Other - Other - D6R30F2LFS-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for D6R30F2LFS
Part Number D6R30F2LFS
Manufacturer LITTELFUSE
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - D6R30F2LFS-1
Released Date Jan 12, 2020
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

D6R30F2LFS Details

Manufacturer Part Number:
D6R30F2LFS
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
France
ECCN Code:
EAR99
HTS Code:
8536.50.90.40
Manufacturer:
Littelfuse Inc
YTEOL:
7
