The recommended operating temperature range for the D75A-019.2M is -40°C to +85°C.
To ensure reliable startup, make sure the power supply voltage is within the recommended range (1.8V to 3.3V), and the oscillator is properly decoupled with a 0.01uF to 0.1uF capacitor between VDD and GND.
The typical current consumption of the D75A-019.2M is around 10mA to 15mA, depending on the output frequency and load conditions.
Yes, the D75A-019.2M has built-in noise reduction features, such as a internal voltage regulator and a low-jitter oscillator design, which help to minimize the impact of noise on the output signal.
The output frequency of the D75A-019.2M is fixed at 19.2MHz and cannot be adjusted. If you need a different frequency, you may need to consider a different oscillator model or use an external frequency divider/multiplier circuit.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D75A-019.2M Overview

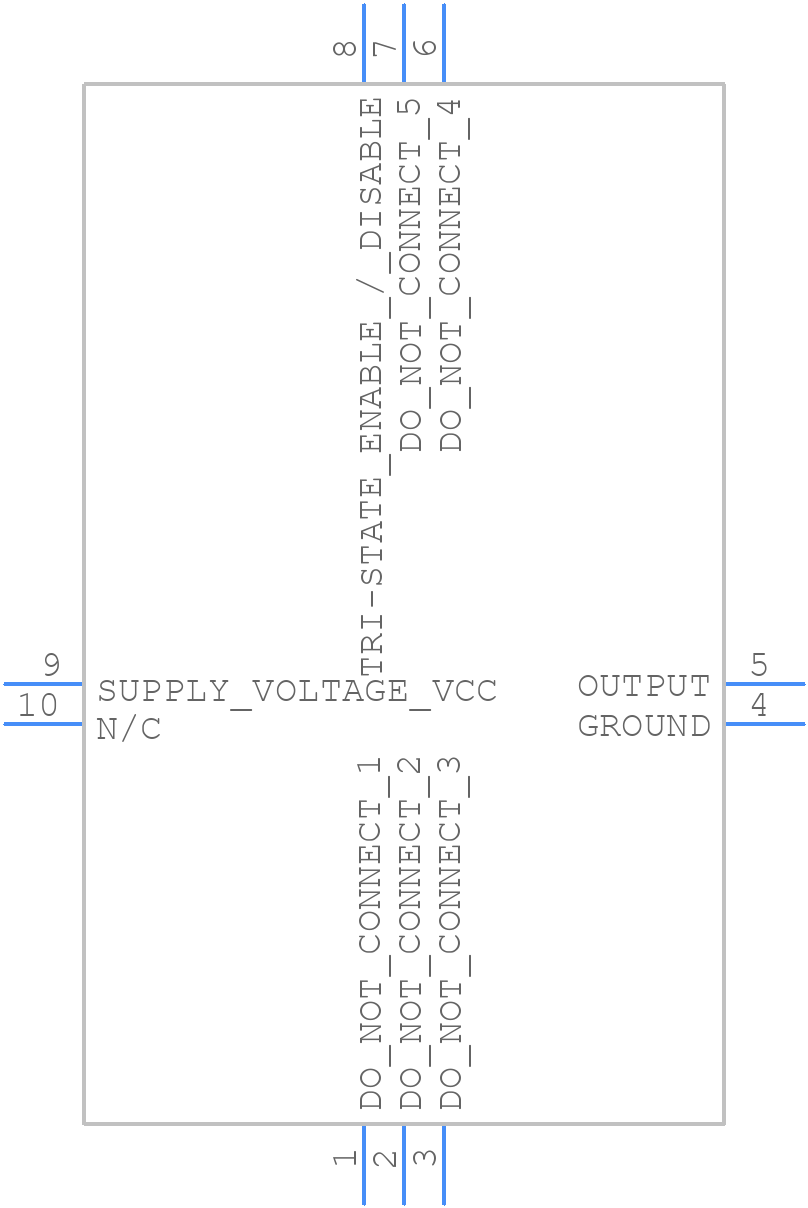

Use the download button to access the D75A-019.2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D75A-,
or try a keyword search, such as TCXO
