The recommended termination impedance is 50 ohms, but it can be adjusted to match the system's impedance for optimal performance.
To ensure stability, use a stable power supply, maintain a consistent temperature range, and consider using a voltage regulator to minimize voltage variations.
The maximum drive power is 1.5 dBm (1.41 mW) to prevent damage to the oscillator.
While the oscillator is designed for commercial applications, it can operate in industrial environments with proper packaging and protection. However, it's essential to follow the recommended operating conditions and consider additional protection measures for extreme environments.
Check the power supply, termination impedance, and environmental conditions. Verify the oscillator is properly connected and configured. If issues persist, consult the datasheet or contact Connor-Winfield's technical support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
D75F-025.0M Overview

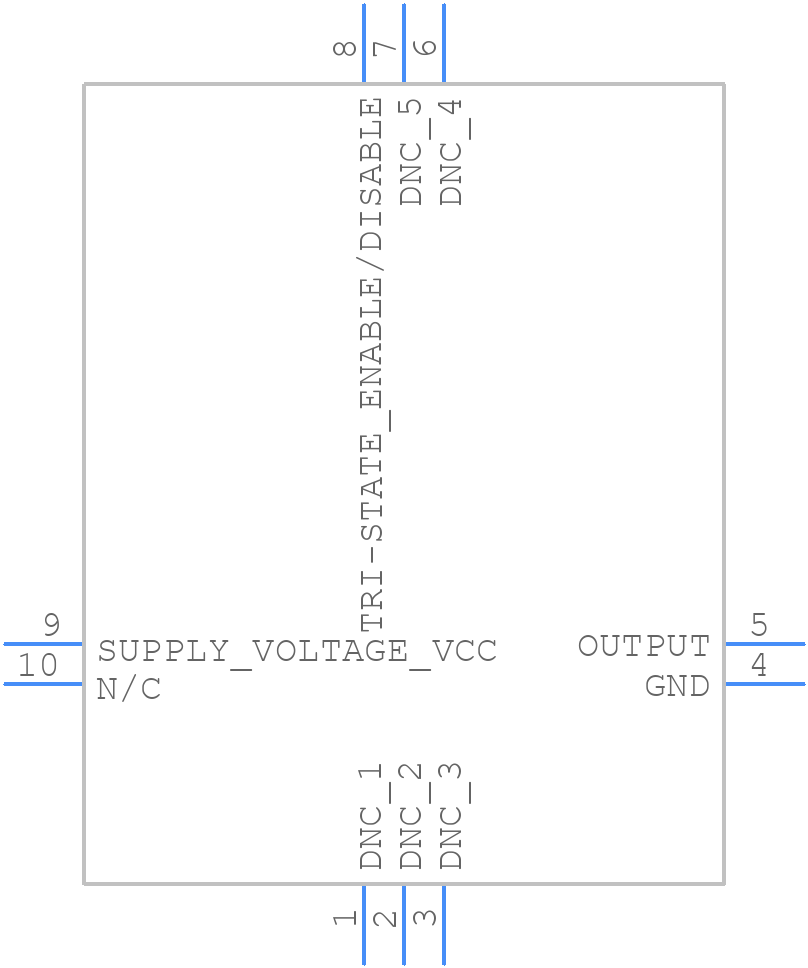

Use the download button to access the D75F-025.0M schematic symbol, PCB footprint, and 3D model.
