D75J-050.0M footprint, schematic symbol and 3D model by Connor Winfield

Symbol

PCB Footprints

3D Models

D75J-050.0M Details

The recommended operating temperature range for the D75J-050.0M is -40°C to +85°C.
To ensure reliable startup, make sure the power supply voltage is stable and within the recommended range, and that the oscillator is properly decoupled from the power supply using capacitors.
The typical current consumption of the D75J-050.0M is around 10-15mA, depending on the specific application and operating conditions.
Yes, the D75J-050.0M is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure reliable operation.
The frequency of the D75J-050.0M can be adjusted by modifying the external load capacitance or by using a different crystal resonator. However, this should only be done by experienced engineers and with caution, as it may affect the oscillator's performance and stability.

Community Provided

System Verified

Community Approved

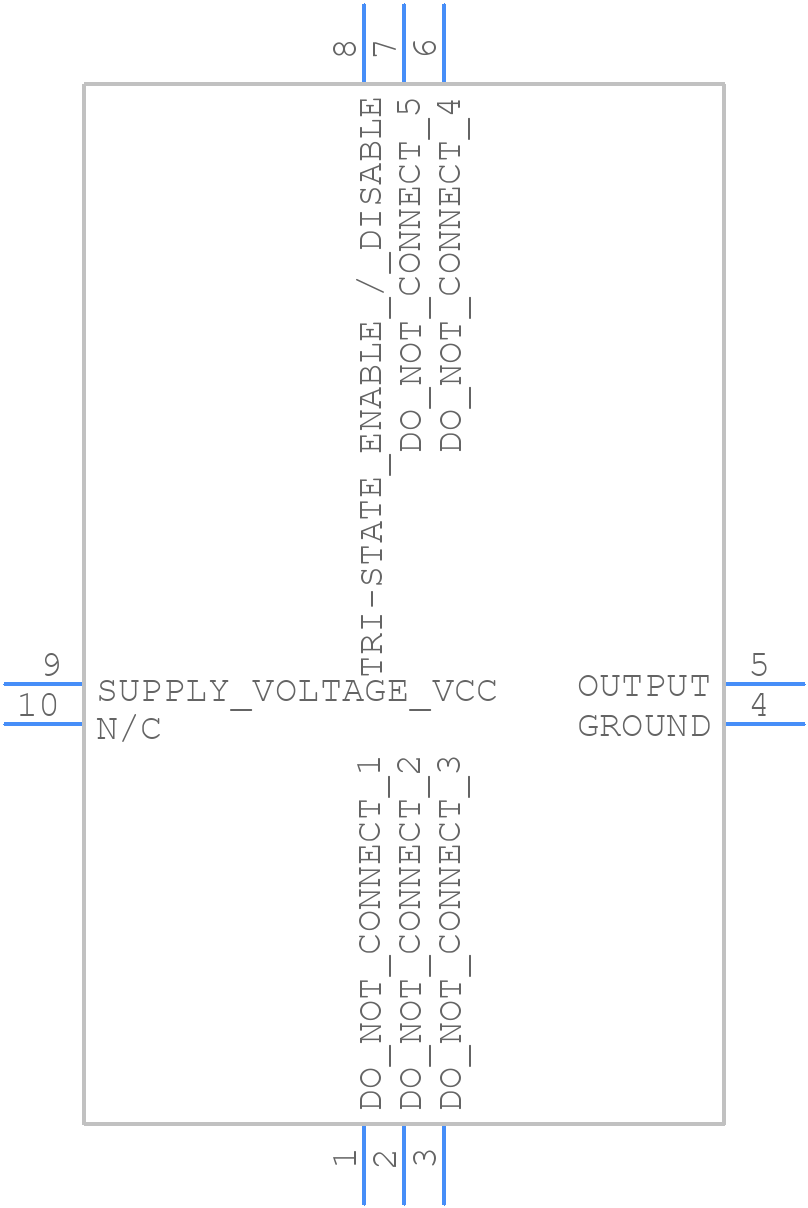

Use the download button to access the D75J-050.0M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like D75J-, or try a keyword search, such as TCXO
