D95040-42 - Harwin

Description: IC Socket: 20+20 Pos. Female Receptacle DIL Extended Straight THT

Download D95040-42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

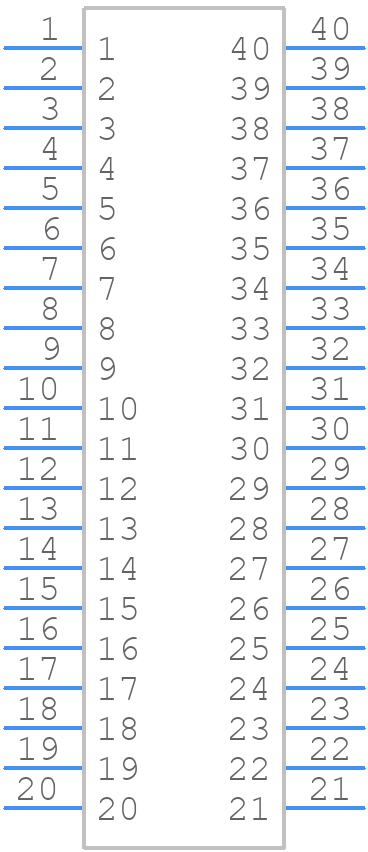

D95040-42 - Harwin - PCB symbol
click to zoom
PCB Footprints

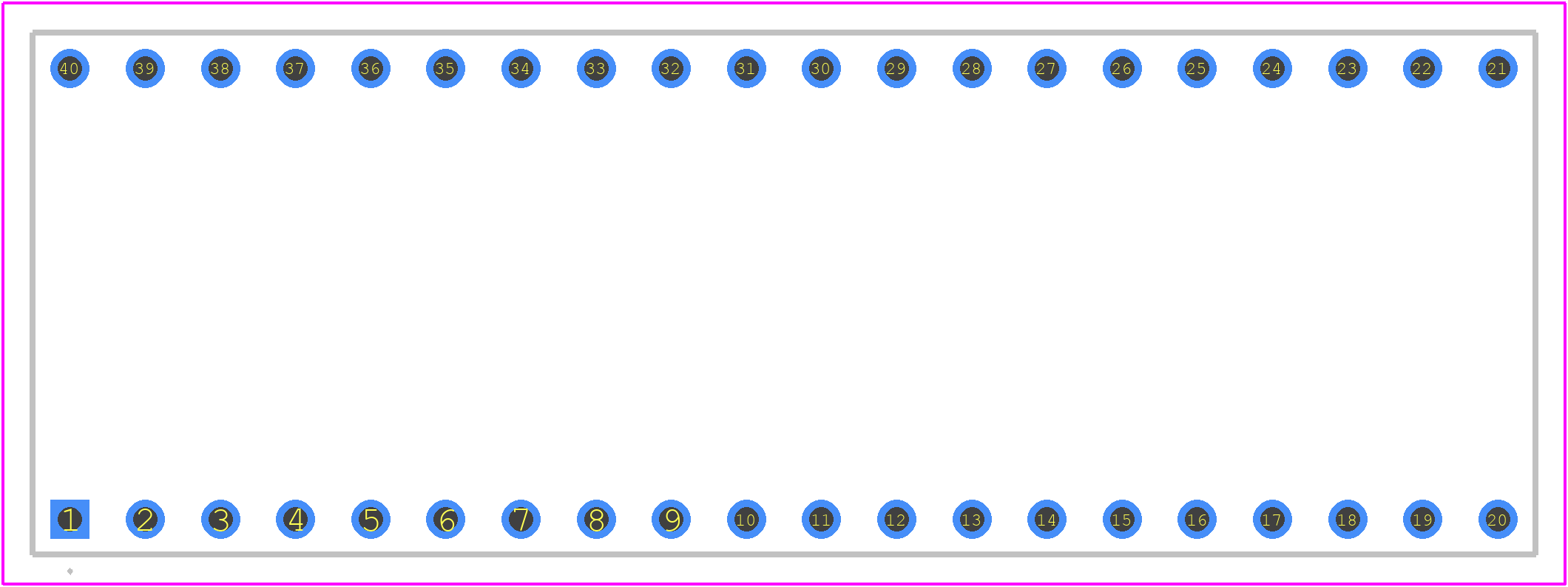

D95040-42 - Harwin PCB footprint - Other - Other - D95040-42-2
click to zoom
3D Models
D95040-42 - Harwin - 3D model - Other - D95040-42-2
click to zoom

D95040-42 Details

  • Manufacturer Part Number:

    D95040-42

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.3

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.694 inch

  • Body Depth:

    0.315 inch

  • Body Length:

    2 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP40

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE

  • Insulation Resistance:

    10000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

D95040-42 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of D95040-42 is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the D95040-42 is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration.
  • The D95040-42 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor use.
  • The D95040-42 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • While the datasheet specifies 24-20 AWG wire sizes, it is possible to use other wire sizes with the D95040-42, but it's recommended to consult with Harwin's technical support team to ensure compatibility and proper termination.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

D95040-42 Overview

Use the download button to access the D95040-42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like D9504, or try a keyword search, such as Sockets and Chip Carriers
