The thermal resistance of the DA-T263-101E-TR is not explicitly stated in the datasheet, but it can be estimated to be around 10-15°C/W, considering the device's power rating and package type.
While the datasheet doesn't explicitly mention vibration tolerance, Ohmite's resistors are generally designed to withstand moderate vibrations. However, it's recommended to consult with Ohmite's application engineers or perform additional testing to ensure the device's reliability in high-vibration environments.
The datasheet doesn't provide specific humidity ratings, but Ohmite's resistors are typically designed to operate in environments with relative humidity up to 80%. However, it's recommended to consult with Ohmite's application engineers or perform additional testing to ensure the device's reliability in high-humidity environments.
While the datasheet specifies an operating temperature range of -55°C to 150°C, it's not recommended to use the DA-T263-101E-TR above 150°C, as this may affect the device's reliability and lifespan. Consult with Ohmite's application engineers for specific guidance on high-temperature applications.
The datasheet doesn't provide a specific soldering profile, but a typical reflow soldering profile for this type of resistor would be: 3°C/s ramp-up to 180°C, 30-60 seconds above 150°C, and 6°C/s ramp-down. However, it's recommended to consult with Ohmite's application engineers or follow the soldering guidelines provided by the PCB manufacturer.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA-T263-101E-TR Overview

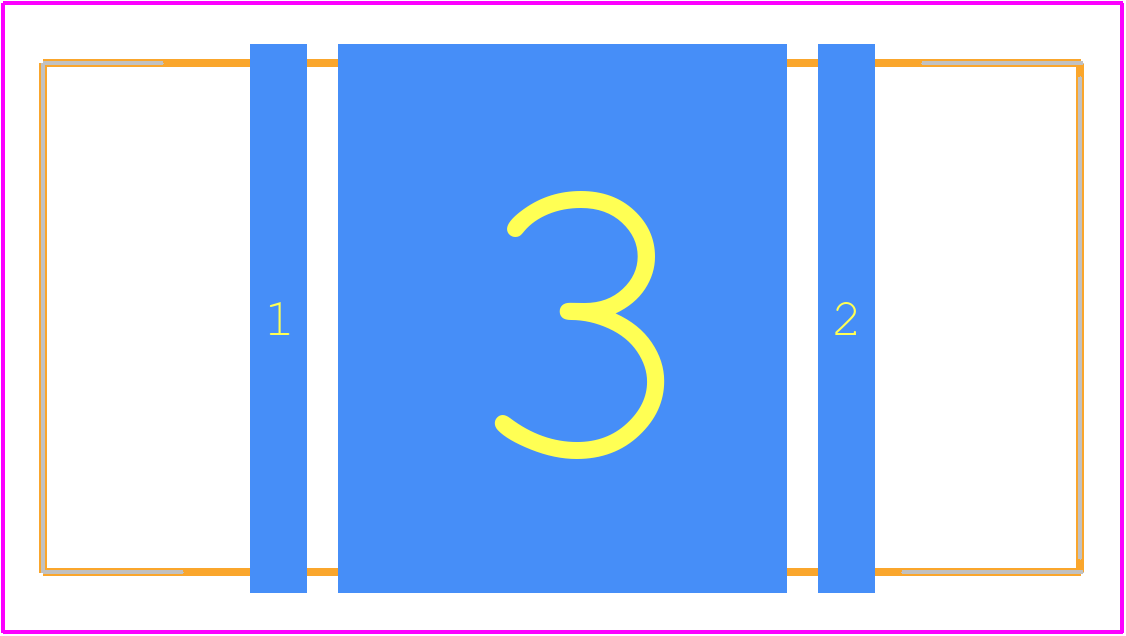

Use the download button to access the DA-T263-101E-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA-T2,
or try a keyword search, such as Heat Sinks
