Renesas provides a recommended PCB layout guide in the DA14535 Application Note (Document Number: DA14535-AN-001) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The DA14535 has a built-in Secure Boot mechanism that ensures the authenticity and integrity of the firmware. Renesas provides a Secure Boot SDK and guidelines for implementing secure firmware updates using cryptographic techniques such as digital signatures and encryption. Refer to the DA14535 Secure Boot Application Note (Document Number: DA14535-AN-002) for more information.
The DA14535 has a low power consumption profile, with a typical current consumption of 4.5mA in RX mode and 5.5mA in TX mode at 3.3V supply voltage. The device also has multiple power modes, including sleep and deep sleep modes, to further reduce power consumption. Refer to the DA14535 datasheet for detailed power consumption characteristics.
Renesas provides a range of tools and resources, including the DA14535 Evaluation Kit, to help optimize the device's performance for specific applications. The kit includes a development board, software development tools, and documentation to help engineers optimize the device's performance, power consumption, and RF characteristics for their specific use case.
The DA14535 has a maximum junction temperature of 125°C. To ensure reliable operation, it is essential to implement proper thermal management, including heat sinking, thermal pads, and airflow management. Renesas provides thermal management guidelines in the DA14535 datasheet and application notes to help engineers design and implement effective thermal management solutions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA14535-00000FX2 Overview

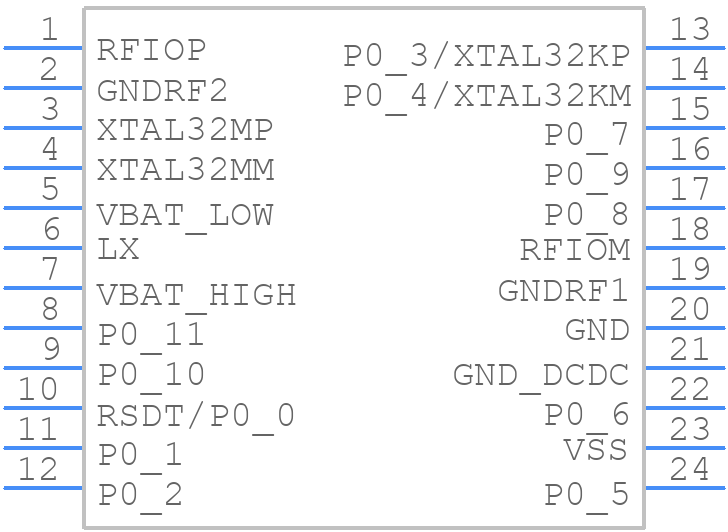

Use the download button to access the DA14535-00000FX2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA145,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
