Renesas provides a recommended PCB layout guide in their application note AN-B-037, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
Renesas provides a Secure Boot and Firmware Update Guide (AN-B-038) that outlines the steps to implement secure boot and firmware updates using the DA14580-01A32's built-in security features, including encryption and digital signatures.
The DA14580-01A32 is rated for operation from -40°C to +85°C, but it's recommended to follow the thermal management guidelines in the datasheet and application notes to ensure reliable operation within this range.
While the DA14580-01A32 is designed to work with Renesas' own Bluetooth stack, it's possible to use it with third-party stacks. However, Renesas only provides support and documentation for their own stack, so integration with other stacks may require additional development and testing.
Renesas provides power optimization guidelines in their application note AN-B-036, which includes techniques such as dynamic voltage and frequency scaling, sleep modes, and peripheral power gating to minimize power consumption and extend battery life.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA14580-01A32 Overview

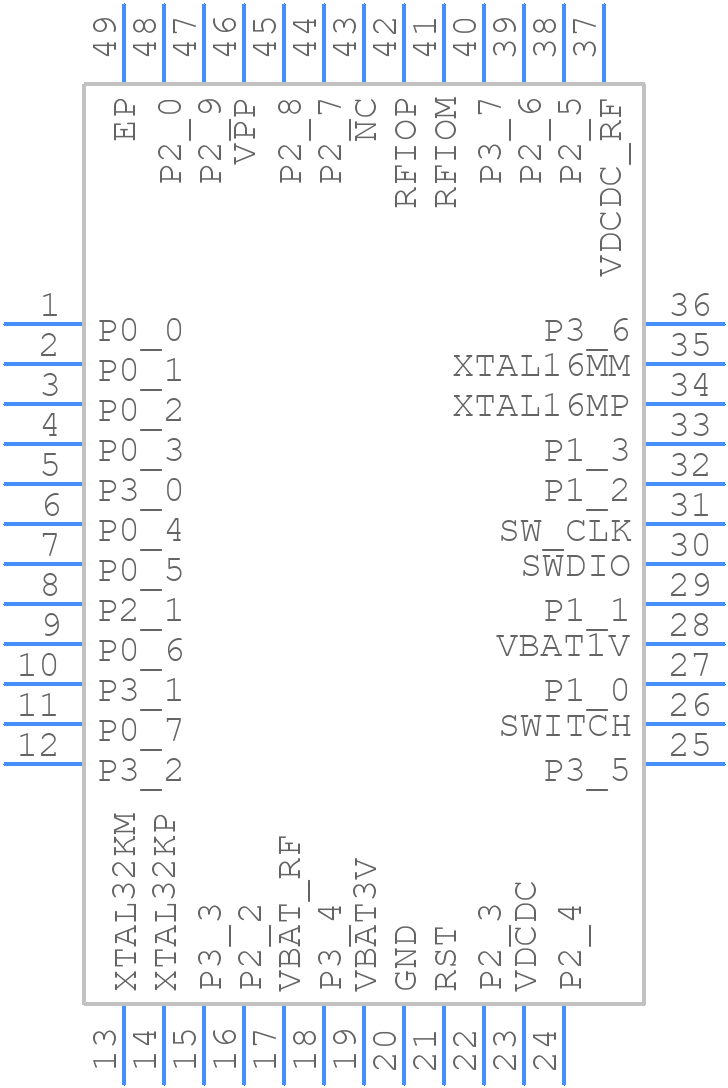

Use the download button to access the DA14580-01A32 schematic symbol, PCB footprint, and 3D model.
