DA14580-01AT2 - Renesas Electronics

Description: DIALOG SEMICONDUCTOR - DA14580-01AT2 - MCU, 32BIT, 16MHZ, QFN-40

Download DA14580-01AT2 Model

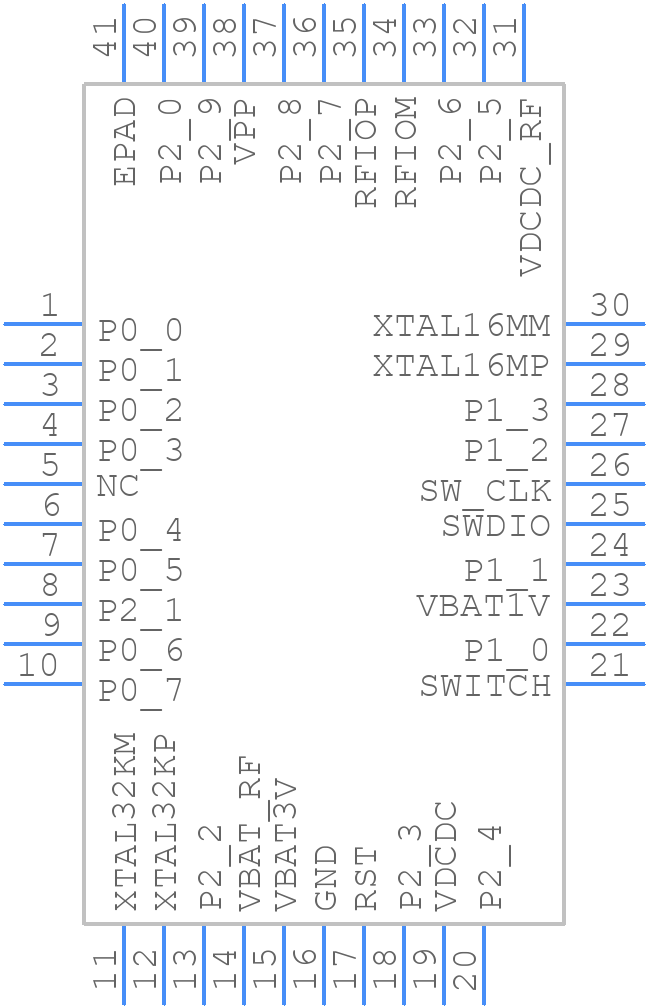

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DA14580-01AT2 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-40
click to zoom
3D Models
DA14580-01AT2 - Renesas Electronics  - 3D model - Quad Flat No-Lead - QFN-40
click to zoom

DA14580-01AT2 Details

  • Manufacturer Part Number:

    DA14580-01AT2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN40

  • Package Description:

    QFN-40

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BLUETOOTH SOC

DA14580-01AT2 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the DA14580-01AT2 application note (Document Number: DA14580-01AT2-AN-001). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The DA14580-01AT2 has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. Renesas provides a secure boot implementation guide and firmware update tools as part of the DA14580-01AT2 software development kit (SDK). The SDK includes documentation, sample code, and tools to help implement secure boot and firmware updates.
  • The DA14580-01AT2 is rated for operation from -40°C to 85°C (industrial temperature range). However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related guidelines and considerations.
  • Yes, the DA14580-01AT2 can be used with external crystals or oscillators. The device has an internal oscillator, but it can also be driven by an external clock source. Renesas provides guidelines for external crystal or oscillator selection and implementation in the DA14580-01AT2 application note (Document Number: DA14580-01AT2-AN-002).
  • The DA14580-01AT2 has various power-saving features, such as dynamic voltage and frequency scaling, sleep modes, and power gating. Renesas provides guidelines for power optimization in the DA14580-01AT2 application note (Document Number: DA14580-01AT2-AN-003). Additionally, the DA14580-01AT2 SDK includes power optimization tools and sample code to help developers minimize power consumption in their applications.
