Description:Connected devices are constantly evolving. New generations appear that are smarter, more full featured and have longer battery lifetimes. To enable this, SmartBond has evolved too. The DA14586 offers designers all the benefits of the industry-leading DA1458x but with even greater flexibility to create more advanced applications from the smallest footprints and power budgets.As part of the SmartBond family, the DA14586 is one of the smallest, lowest power and most integrated Bluetooth® solutions available. T
Renesas provides a recommended PCB layout guide in their application note AN-B-037, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The DA14586-00F02AT2 has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. Renesas provides a Secure Boot and Firmware Update Guide that outlines the steps to implement secure boot and firmware updates using the DA14586-00F02AT2's cryptographic accelerators and secure storage.
The DA14586-00F02AT2 is rated for operation from -40°C to 85°C, but it's recommended to operate within the -20°C to 70°C range for optimal performance and reliability. Operating outside this range may affect the device's performance, power consumption, and lifespan.
Renesas provides a Power Management Guide that outlines techniques for optimizing power consumption, including dynamic voltage and frequency scaling, power gating, and sleep modes. Additionally, the DA14586-00F02AT2 has a built-in power management unit (PMU) that can be configured to minimize power consumption.
The DA14586-00F02AT2's USB interface supports data transfer rates up to 480 Mbps, making it suitable for high-speed data transfer applications such as data logging and firmware updates.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA14586-00F02AT2 Overview

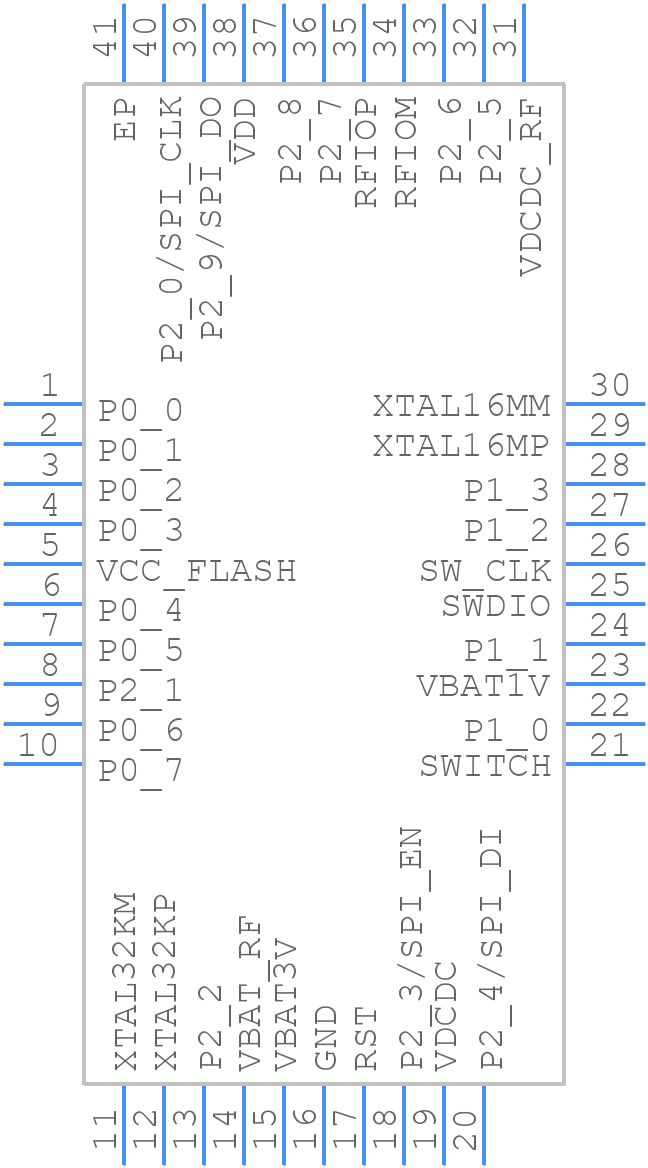

Use the download button to access the DA14586-00F02AT2 schematic symbol, PCB footprint, and 3D model.
