DA14592-01000O92 - Renesas Electronics

Description: The DA14592 is a mid-range Bluetooth LE SoC that offers the lowest power consumption and smallest solution footprint in its class. This SoC features multi-core processing (Arm® Cortex®-M33™, Arm Cortex-M0+) and includes on-chip memory (RAM/ROM/Flash) sized to support a broad range of applications while maintaining cost-effectiveness. Typical applications include connected medical devices, asset tracking, human interface devices, metering systems, PoS readers, and crowdsourced location (CSL) tracking. Notabl

Download DA14592-01000O92 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

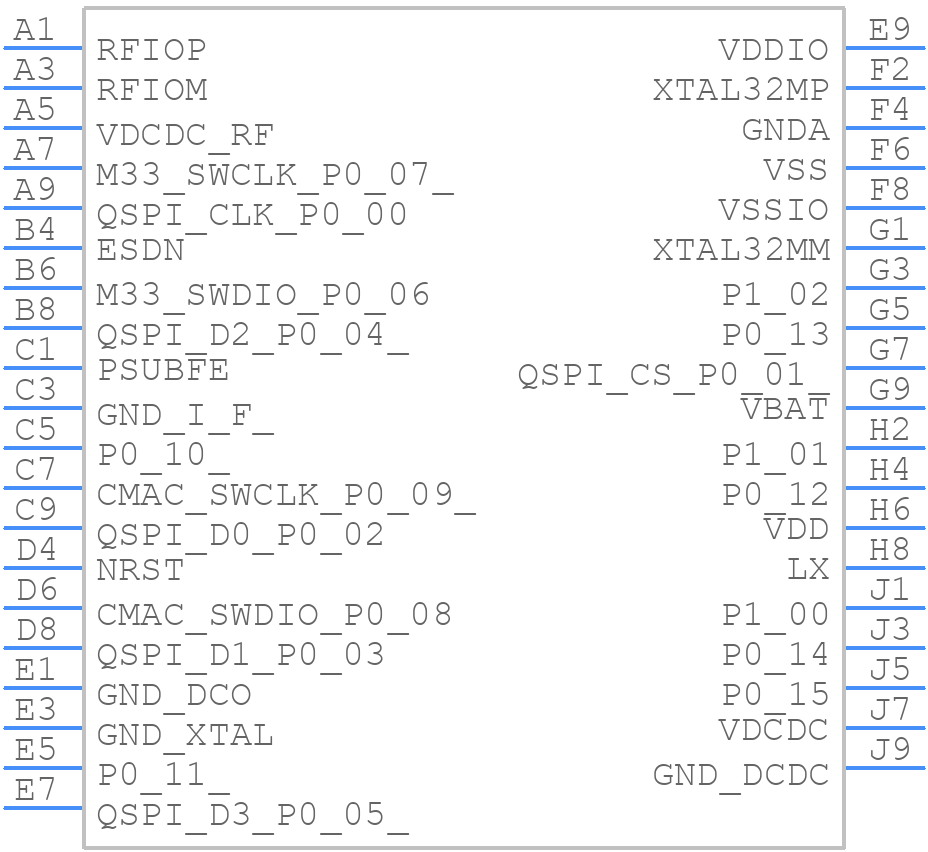

DA14592-01000O92 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
DA14592-01000O92 - Renesas Electronics PCB footprint - Other - Other - WLCSP39, 2.48 x 3.32, 0.42 mm
click to zoom
3D Models
DA14592-01000O92 - Renesas Electronics - 3D model - Other - WLCSP39, 2.48 x 3.32, 0.42 mm
click to zoom

DA14592-01000O92 Details

  • Manufacturer Part Number:

    DA14592-01000O92

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.70

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

DA14592-01000O92 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the DA14592 Application Note (Document Number: DA14592-AN-001) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The DA14592 has a built-in Secure Boot feature that ensures the authenticity and integrity of the firmware. Renesas provides a Secure Boot SDK and guidelines for implementing secure firmware updates using cryptographic techniques such as digital signatures and encryption.
  • The DA14592 is rated for operation from -40°C to +85°C, but it's recommended to operate within the -20°C to +70°C range for optimal performance and reliability.
  • Renesas provides power optimization guidelines in the DA14592 datasheet and application notes, including techniques such as dynamic voltage and frequency scaling, power gating, and low-power modes to minimize power consumption.
  • Renesas recommends using a 32.768 kHz crystal oscillator with a load capacitance of 12 pF to 20 pF for optimal performance and stability. The DA14592 datasheet provides more detailed guidelines for crystal oscillator settings.
