DA14592MOD-01000002 - Renesas Electronics

Description: The DA14592MOD is based on the DA14592 Bluetooth® Low Energy 5.2 system-on-chip (SoC) and brings out all its hardware features and capabilities. The module integrates all passives and the antenna, and is supported by user-friendly software. The DA14592MOD targets broad market use and is certified across regions, providing significant reductions in development cost, risk, and time-to-market. A variety of standard and advanced peripherals enable interaction with other system components and the development of

Download DA14592MOD-01000002 Model

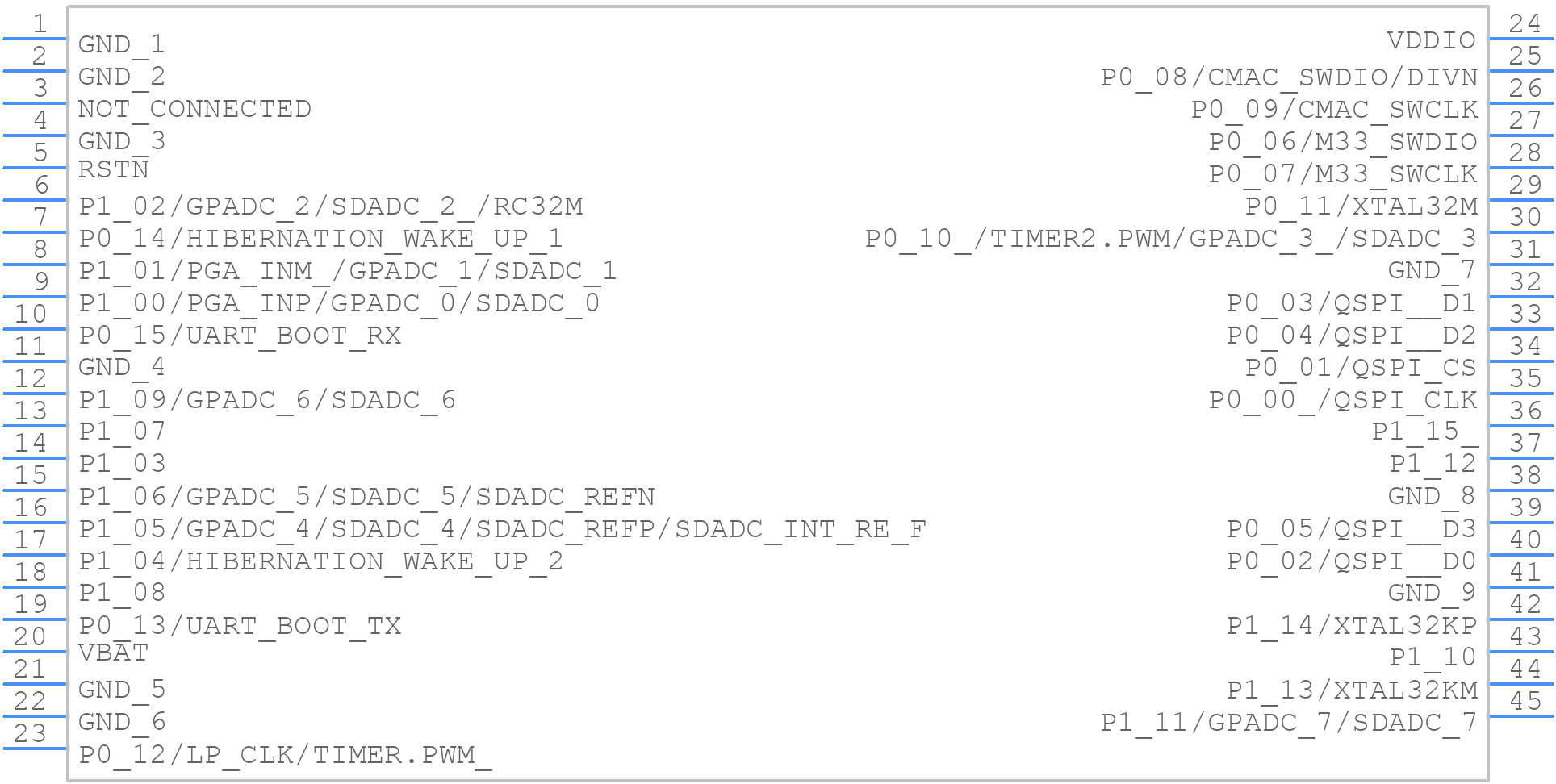

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

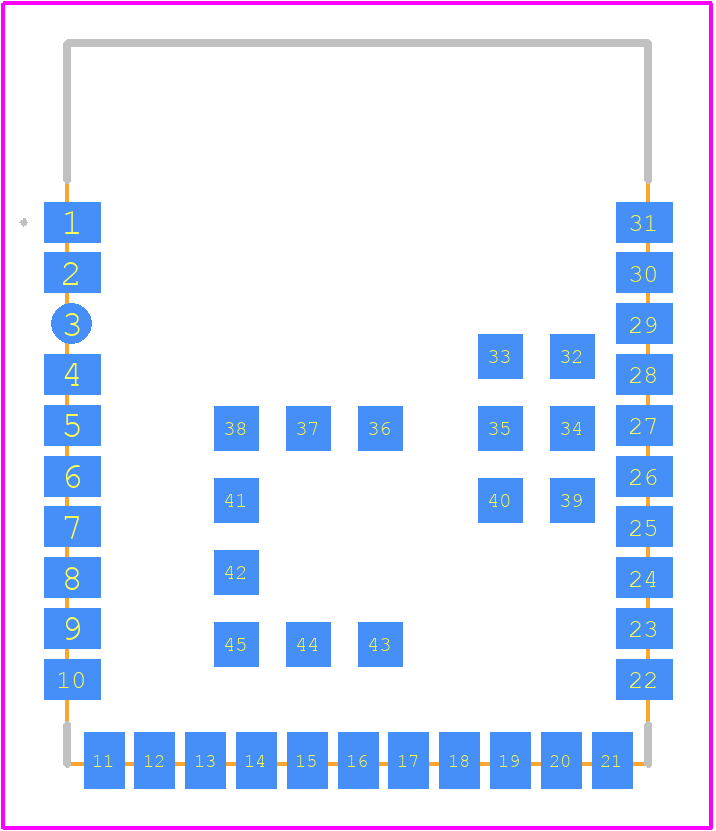

DA14592MOD-01000002 - Renesas Electronics PCB footprint - Other - Other - MN0045AA
click to zoom
3D Models
DA14592MOD-01000002 - Renesas Electronics  - 3D model - Other - MN0045AA
click to zoom

DA14592MOD-01000002 Details

  • Manufacturer Part Number:

    DA14592MOD-01000002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA14592MOD-01000002 Overview

Use the download button to access the DA14592MOD-01000002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA145, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
