DA2032-ALB - COILCRAFT

Description: Audio Transformers / Signal Transformers DA2032 Cap Chrgr For Linear LT3750

Download DA2032-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

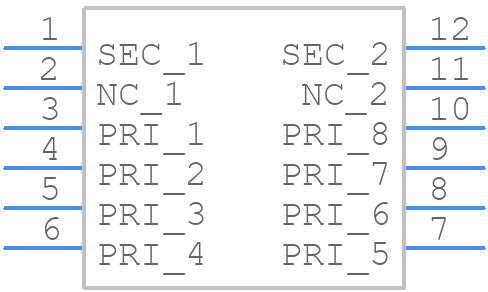

DA2032-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
DA2032-ALB - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - DA2032-AL
click to zoom
3D Models
DA2032-ALB - COILCRAFT - 3D model - Small Outline Packages - DA2032-AL
click to zoom

DA2032-ALB Details

  • Manufacturer Part Number:

    DA2032-ALB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Application:

    POWER

  • Height:

    8.89 mm

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3 V

  • Isolation Voltage:

    1500 V

  • Length:

    17.2 mm

  • Load Resistance:

    1.6 Ω

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current 1:

    3 A

  • Packing Method:

    TR

  • Primary Inductance:

    10 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:10

  • Width:

    14.98 mm

DA2032-ALB Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DA2032-ALB is a rectangular pad with a size of 2.5 mm x 1.6 mm, with a non-solder mask defined (NSMD) pad shape.
  • The DA2032-ALB is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation.
  • The DA2032-ALB is designed to withstand vibrations up to 10 G, but it's recommended to use a secure mounting method, such as soldering or adhesive, to prevent movement and ensure reliable operation.
  • Yes, the DA2032-ALB is compatible with lead-free soldering processes, with a recommended peak reflow temperature of 260°C.
  • The self-resonant frequency of the DA2032-ALB is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
