DA2033-ALB - COILCRAFT

Description: COILCRAFT - DA2033-ALB - TRANSFORMER, FLYBACK, LT3750/LT3751, SMD

Download DA2033-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

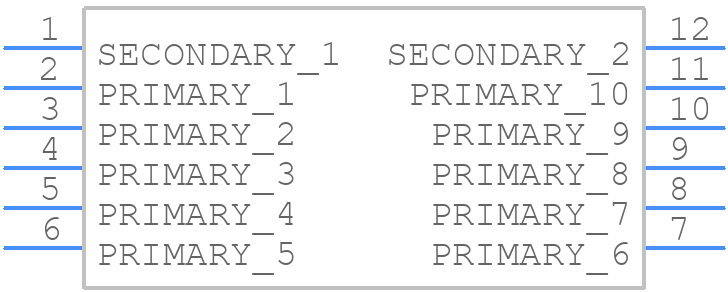

Symbol
DA2033-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
DA2033-ALB - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - DA2033-AL
click to zoom
3D Models
DA2033-ALB - COILCRAFT - 3D model - Small Outline Packages - DA2033-AL
click to zoom

DA2033-ALB Details

  • Manufacturer Part Number:

    DA2033-ALB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    9.78 mm

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3 V

  • JESD-609 Code:

    e2

  • Length:

    17.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Primary Inductance:

    10 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    17 mm

DA2033-ALB Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application notes, which includes a pad layout and dimensions for optimal soldering and thermal performance.
  • The DA2033-ALB is a molded inductor, which makes it more resistant to moisture and humidity than other types of inductors. However, it's still important to follow proper storage and handling procedures to prevent moisture absorption. Baking the components before soldering can also help to remove any absorbed moisture.
  • The DA2033-ALB has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications. However, the inductor's performance may degrade at extreme temperatures, so it's essential to consider the specific application requirements.
  • The optimal inductance value depends on the specific application requirements, such as the operating frequency, current, and voltage. Coilcraft provides a range of inductance values for the DA2033-ALB, and engineers can use simulation tools or consult with Coilcraft's application engineers to determine the best value for their design.
  • Yes, the DA2033-ALB is compatible with lead-free soldering processes, making it suitable for modern electronics manufacturing. However, it's essential to follow the recommended soldering profile and temperature range to ensure reliable assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA2033-ALB Overview

Use the download button to access the DA2033-ALB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA203, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
