DA2034-ALB - COILCRAFT

Description: COILCRAFT - DA2034-ALB - Pulse Transformer, 1:10, 1.5 kV, 10 ?H, 0.018 ohm

Download DA2034-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

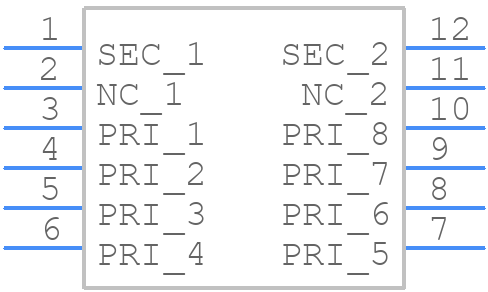

DA2034-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

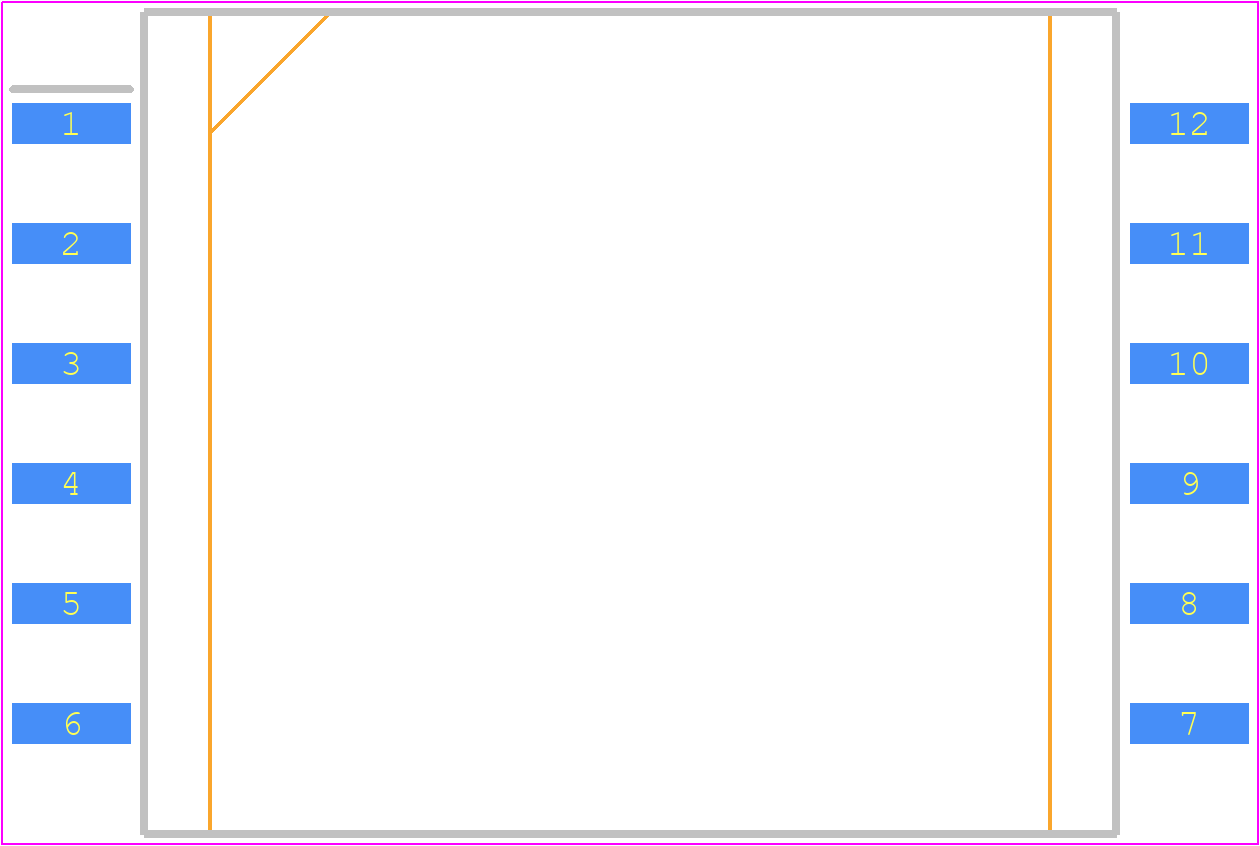

DA2034-ALB - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - DA2034-ALD_11
click to zoom
3D Models
DA2034-ALB - COILCRAFT - 3D model - Small Outline Packages - DA2034-ALD_11
click to zoom

DA2034-ALB Details

  • Manufacturer Part Number:

    DA2034-ALB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Height:

    11.43 mm

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3 V

  • JESD-609 Code:

    e2

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Primary Inductance:

    10 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.57 mm

DA2034-ALB Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DA2034-ALB is a rectangular pad with a size of 3.3 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad shape.
  • The DA2034-ALB is rated for operation up to 125°C, but it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation.
  • The DA2034-ALB is a moisture-sensitive device. It's recommended to store the components in a dry environment (less than 20% RH) and to bake the components at 125°C for 24 hours before reflow soldering.
  • The maximum allowable voltage for the DA2034-ALB is 50 V, but it's recommended to operate the inductor at a voltage below 40 V to ensure reliable operation.
  • The DA2034-ALB is designed for high-frequency applications up to 1 GHz. However, it's recommended to consult the datasheet and application notes for specific guidance on using the inductor in high-frequency circuits.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA2034-ALB Overview

Use the download button to access the DA2034-ALB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA203, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
