DA2303-ALB - COILCRAFT

Description: Transformer, for ADM2485, 5-6V, SMT, RoHS

Download DA2303-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

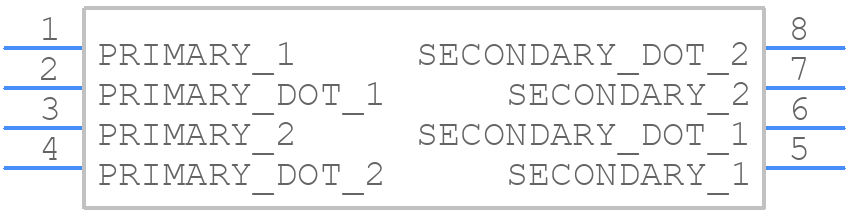

Symbol
DA2303-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
DA2303-ALB - COILCRAFT PCB footprint - Other - Other - DA2303-ALB-4
click to zoom
3D Models
DA2303-ALB - COILCRAFT - 3D model - Other - DA2303-ALB-4
click to zoom

DA2303-ALB Details

  • Manufacturer Part Number:

    DA2303-ALB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Approvals:

    AEC-Q200

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    5.97 mm

  • Input Voltage-Nom:

    5 V

  • Isolation Voltage:

    2500 V

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    6 V

  • Output Voltage 2:

    6 V

  • Packing Method:

    TR

  • Primary Rating:

    DUAL 5V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    POWER TRANSFORMER

  • Width:

    8.1 mm

DA2303-ALB Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DA2303-ALB is a rectangular pad with a size of 2.5 mm x 1.6 mm, with a non-solder mask defined (NSMD) pad shape.
  • To minimize the impact of PCB layout and proximity to other components, keep the DA2303-ALB at least 1.5 mm away from other components, and use a solid ground plane underneath the inductor to reduce electromagnetic interference (EMI).
  • The DA2303-ALB has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the inductor.
  • The DA2303-ALB has a tolerance of ±5% for DC resistance, which means the actual DC resistance may vary by up to 5% from the specified value.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA2303-ALB Overview

Use the download button to access the DA2303-ALB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA230, or try a keyword search, such as Power/Mains Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
