The recommended land pattern for the DA2304-ALB is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
To minimize the impact of PCB layout and proximity to other components, keep the DA2304-ALB at least 1.5 mm away from other components, and use a solid ground plane underneath the inductor to reduce electromagnetic interference (EMI).
The DA2304-ALB has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C.
Coilcraft offers custom inductance tolerances for the DA2304-ALB; contact Coilcraft's customer support to discuss your specific requirements and obtain a custom part number.
Yes, the DA2304-ALB is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DA2304-ALB Overview

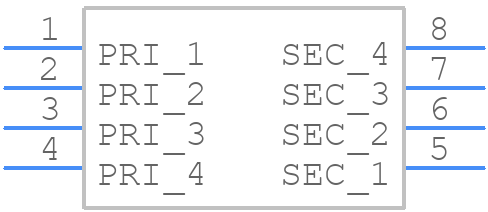

Use the download button to access the DA2304-ALB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DA230,
or try a keyword search, such as Power/Mains Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
