DA2304-ALD footprint, schematic symbol and 3D model by COILCRAFT

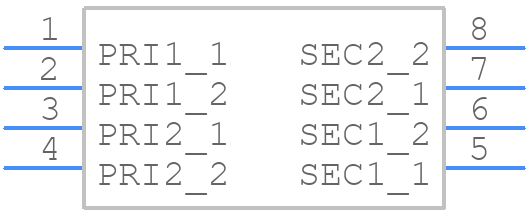

Symbol

click to zoom

PCB Footprints

DA2304-ALD - COILCRAFT PCB footprint - Other - Other - DA2304-ALD-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DA2304-ALD
Part Number DA2304-ALD
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - DA2304-ALD-3
Released Date Apr 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DA2304-ALD Details

Manufacturer Part Number:
DA2304-ALD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.98
Application:
POWER
Approvals:
AEC-Q200
Center Tap Feature 1:
NO
Center Tap Feature 2:
NO
Height:
5.97 mm
Input Voltage-Min:
3.3 V
Input Voltage-Nom:
3.3 V
Isolation Voltage:
2500 V
Length:
10.3 mm
Load Resistance:
0.232 Ω
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
6 V
Output Voltage 2:
6 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
7.2 W
Primary Inductance:
17.8 µH
Primary Rating:
DUAL 3.3V
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Tin - with Nickel barrier
Transformer Type:
POWER TRANSFORMER
Turns Ratio (Np:Ns):
1:2.2
Width:
8.1 mm

DA2304-ALD Frequently Asked Questions (FAQs)

The recommended land pattern for the DA2304-ALD is a rectangular pad with a size of 2.3 mm x 1.4 mm, with a non-solder mask defined (NSMD) pad shape.
To minimize the impact of PCB layout and proximity to other components, keep the DA2304-ALD at least 1.5 mm away from other components, and use a solid ground plane underneath the inductor to reduce electromagnetic interference (EMI).
The DA2304-ALD has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C.
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the inductor.
The DA2304-ALD has a DC bias tolerance of up to 1.5 A, but it's recommended to keep the DC bias current below 1 A to ensure optimal performance and reliability.
