DA9313-02VK2 - Renesas Electronics

Description: The DA9313 integrates the industry’s first inductor-less 10A power converter for best-in-class efficiency and offers master/slave operation for up to 20A of output current. The high current, inductor-less power converter offers incredible efficiency above 98%, powering greater than 50W in a less than 10mm2 package.DA9313 enables applications to be powered with improved efficiencies and requires less volume compared to conventional high voltage direct conversion solutions. The fully integrated power converte

Download DA9313-02VK2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

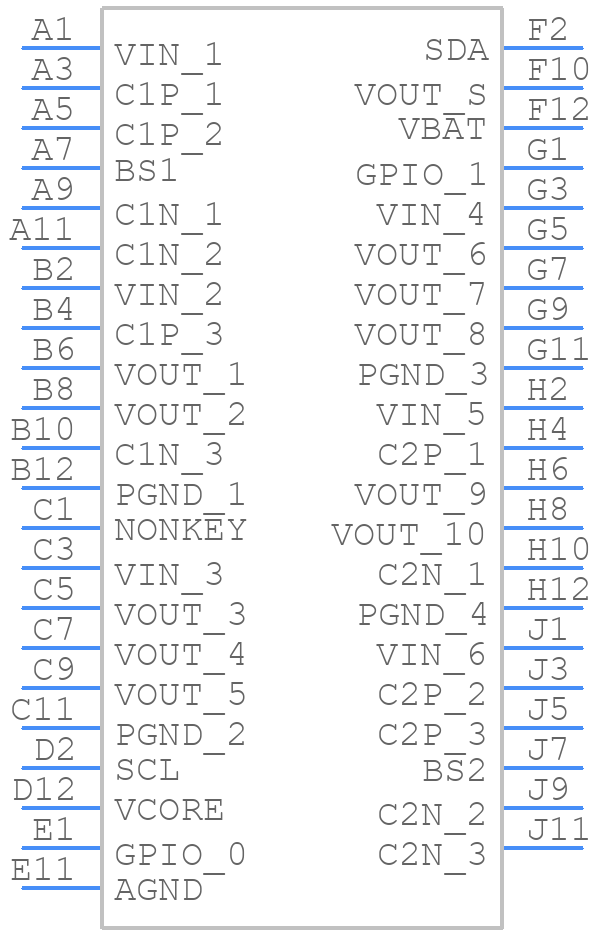

Symbol
DA9313-02VK2 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
DA9313-02VK2 - Renesas Electronics PCB footprint - Other - Other - 43-WLCSP
click to zoom
3D Models
DA9313-02VK2 - Renesas Electronics - 3D model - Other - 43-WLCSP
click to zoom

DA9313-02VK2 Details

  • Manufacturer Part Number:

    DA9313-02VK2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    43-WLCSP

  • Package Description:

    WLCSP-43

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    10.5 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    7.4 V

  • JESD-30 Code:

    R-XBGA-B43

  • Length:

    3.545 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    43

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA43,6X11(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    0.539 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    500 kHz

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.28 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.815 mm

DA9313-02VK2 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1841, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The DA9313-02VK2 has a low-power mode that can be enabled by setting the PMU_CTRL register to 0x01. Additionally, the device can be put into a deeper sleep mode by setting the SLEEP_CTRL register to 0x02. Refer to the datasheet section 7.3 for more details.
  • The maximum allowed voltage on the input pins is 5.5V, as specified in the datasheet section 6.1. Exceeding this voltage may damage the device.
  • Renesas provides an I2C troubleshooting guide in their application note AN1842, which covers common issues such as bus contention, clock stretching, and slave address conflicts.
  • Renesas recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC, such as the Renesas ESD9L5.0ST5G, to protect the DA9313-02VK2 from electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DA9313-02VK2 Overview

Use the download button to access the DA9313-02VK2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DA931, or try a keyword search, such as Switching Regulator or Controllers
