DABS2100-13 - Diodes Incorporated

Description: Bridge Rectifier Single Phase Schottky 100 V Surface Mount ABS

Download DABS2100-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

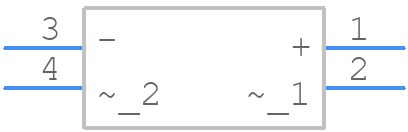

DABS2100-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

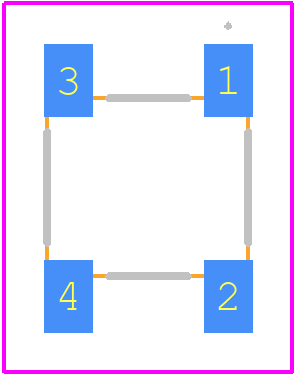

DABS2100-13 - Diodes Incorporated PCB footprint - Other - Other - ABS_2024
click to zoom
3D Models
DABS2100-13 - Diodes Incorporated - 3D model - Other - ABS_2024
click to zoom

DABS2100-13 Details

  • Manufacturer Part Number:

    DABS2100-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    10

DABS2100-13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DABS2100-13 is -40°C to 125°C.
  • Yes, the DABS2100-13 is designed for high-reliability applications and is qualified to AEC-Q101 standards.
  • Follow the recommended soldering profile and guidelines provided in the datasheet, and ensure the PCB is designed with a suitable thermal pad and layout to facilitate proper heat dissipation.
  • The maximum allowable voltage for the DABS2100-13 is 36V, but it's recommended to operate within the specified voltage range of 12V to 24V for optimal performance and reliability.
  • Yes, the DABS2100-13 is suitable for switching regulator applications due to its fast switching speed and low voltage drop.
