DAC08EPZ - Analog Devices

Description: DAC08EPZ, 8 bit-Bit DAC 11.8Msps, Parallel, 16-Pin PDIP

Download DAC08EPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

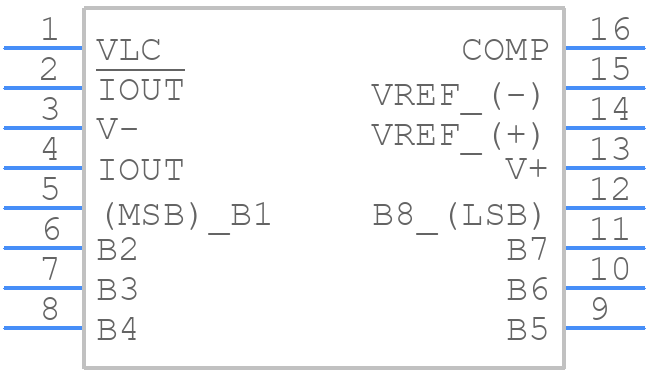

DAC08EPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DAC08EPZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Lead PDIP (N-16)
click to zoom
3D Models
DAC08EPZ - Analog Devices - 3D model - Dual-In-Line Packages - 16-Lead PDIP (N-16)
click to zoom

DAC08EPZ Details

  • Manufacturer Part Number:

    DAC08EPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog Output Voltage-Max:

    18 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Linearity Error-Max (EL):

    0.19%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    0.085 µs

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DAC08EPZ Frequently Asked Questions (FAQs)

  • The maximum output current of the DAC08EPZ is 5mA. This is specified in the datasheet, but it's often overlooked. Make sure to check the output current requirements of your application to ensure the DAC can supply enough current.
  • To ensure monotonicity, you need to use a high-quality voltage reference and ensure that the input digital code is incremented or decremented in a monotonic manner. Additionally, you can use the DAC08EPZ's built-in monotonicity feature by connecting the MONO pin to VCC or GND, depending on the desired behavior.
  • The settling time of the DAC08EPZ is approximately 100ns. This is the time it takes for the output voltage to settle to within 1/2 LSB of its final value after a code change. This is an important consideration when designing high-speed systems.
  • Yes, the DAC08EPZ can be used with a single supply voltage. The device can operate from a single supply voltage of 12V to 15V. However, the output voltage range will be limited to 0V to VCC-2V. If you need a wider output voltage range, you can use an external amplifier or a voltage doubler circuit.
  • To reduce the power consumption of the DAC08EPZ, you can use the device's power-down mode. This mode reduces the power consumption to less than 10mW. You can also reduce the power consumption by operating the device at a lower clock frequency or by using a lower supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC08EPZ Overview

Use the download button to access the DAC08EPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC08, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
