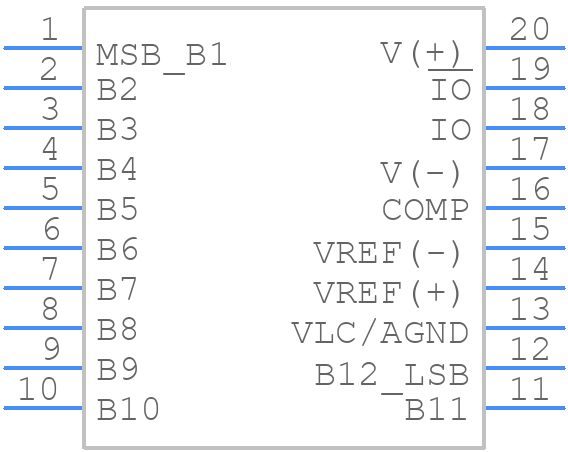

DAC312HPZ - Analog Devices

DAC312HPZ Details

• Manufacturer Part Number:

  DAC312HPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-20

• Pin Count:

  20

• Manufacturer Package Code:

  N-20

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog Output Voltage-Max:

  10 V

• Analog Output Voltage-Min:

  -5 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  R-PDIP-T20

• JESD-609 Code:

  e3

• Length:

  25.2 mm

• Linearity Error-Max (EL):

  0.05%

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Settling Time-Max:

  1 µs

• Settling Time-Nom (tstl):

  0.25 µs

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
