DAC8412FPCZ-REEL - Analog Devices

Description: Digital to Analog Converters - DAC DAC8412FPC WITH T & R

Download DAC8412FPCZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

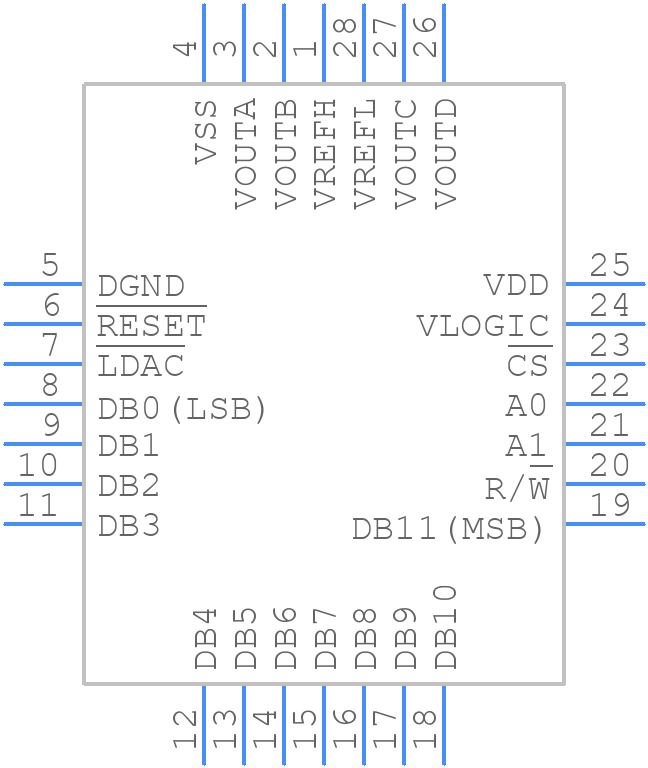

Symbol
DAC8412FPCZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DAC8412FPCZ-REEL - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 28-Lead Plastic Leaded Chip Carrier [PLCC] (P-28)
click to zoom
3D Models
DAC8412FPCZ-REEL - Analog Devices - 3D model - Plastic Leaded Chip Carrier - 28-Lead Plastic Leaded Chip Carrier [PLCC] (P-28)
click to zoom

DAC8412FPCZ-REEL Details

  • Manufacturer Part Number:

    DAC8412FPCZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LCC

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MO-047AB, LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    P-28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • Length:

    11.506 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    5

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.506 mm

DAC8412FPCZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the DAC8412FPCZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the DAC close to the analog-to-digital converter (ADC) to minimize noise. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a full-scale input voltage to the DAC and adjusting the offset and gain trim bits to achieve the desired output voltage. It's also important to ensure that the DAC is operated within its specified temperature range and that the power supply is stable and noise-free.
  • The maximum output current of the DAC8412FPCZ-REEL is 5 mA. If the output current exceeds this limit, the output voltage may droop or become unstable. To avoid this, ensure that the load impedance is high enough to keep the output current below the maximum limit.
  • The DAC8412FPCZ-REEL has a 3-wire serial interface that requires a clock signal, a data signal, and a load signal. The timing requirements include a clock frequency of 5 MHz to 50 MHz, a data setup time of 10 ns, and a load pulse width of 10 ns to 100 ns. Ensure that the digital interface is properly terminated and that the signals are properly synchronized to avoid data corruption.
  • The DAC8412FPCZ-REEL has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure that the device is operated within its specified temperature range (-40°C to 125°C), and that the PCB is designed to dissipate heat effectively. Additionally, consider using thermal vias and thermal pads to improve heat dissipation.
