DAC8512FPZ - Analog Devices

Description: DAC8512FPZ, 12 bit-Bit DAC 62.5ksps, SPI, 8-Pin PDIP

Download DAC8512FPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

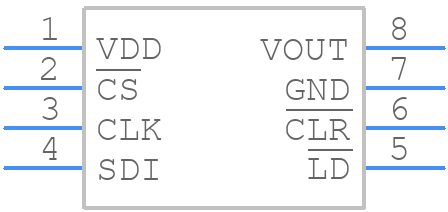

DAC8512FPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DAC8512FPZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8pin dip
click to zoom
3D Models
DAC8512FPZ - Analog Devices - 3D model - Dual-In-Line Packages - 8pin dip
click to zoom

DAC8512FPZ Details

  • Manufacturer Part Number:

    DAC8512FPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MINI, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.095 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    COMPLEMENTARY OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DAC8512FPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and that the device operates correctly.
  • To ensure accurate voltage output, make sure to use a stable and low-noise voltage reference (VREF), and decouple the VREF pin with a capacitor to reduce noise. Additionally, use a low-impedance output buffer amplifier if the load impedance is high.
  • The maximum output current of the DAC8512FPZ is 5 mA. Exceeding this current may cause the output voltage to droop or the device to overheat.
  • The DAC8512FPZ can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller sends the digital code to the DAC, and the DAC converts it to an analog voltage output. Make sure to follow the specific interface protocol and timing requirements outlined in the datasheet.
  • The settling time of the DAC8512FPZ is typically 10 μs to 1% of the final value. This means that the output voltage takes around 10 μs to settle to within 1% of the final value after a code change.
