A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate and away from each other. Additionally, use a low-ESR capacitor for the VREF pin and a 0.1uF capacitor for the AVDD pin.
The DAC8512FSZ-REEL has an internal calibration circuit that sets the output voltage to 0V at power-up. To ensure accurate output, it's recommended to perform a full-scale calibration by writing the maximum code (0x3FF) to the DAC register and then adjusting the output voltage to the desired full-scale value using an external trim pot or calibration circuit.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
During power-down or reset, the DAC8512FSZ-REEL's output will go to a high-impedance state. To prevent any unwanted output voltage, it's recommended to add an external pull-down resistor or a voltage clamp circuit to ensure the output voltage remains within a safe range.
The maximum output current of the DAC8512FSZ-REEL is 5mA. To ensure it's not exceeded, it's recommended to add an external buffer amplifier or a current-limiting resistor in series with the output to prevent overcurrent conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8512FSZ-REEL Overview

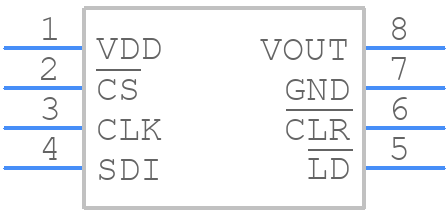

Use the download button to access the DAC8512FSZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC85,
or try a keyword search, such as Digital to Analog Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
