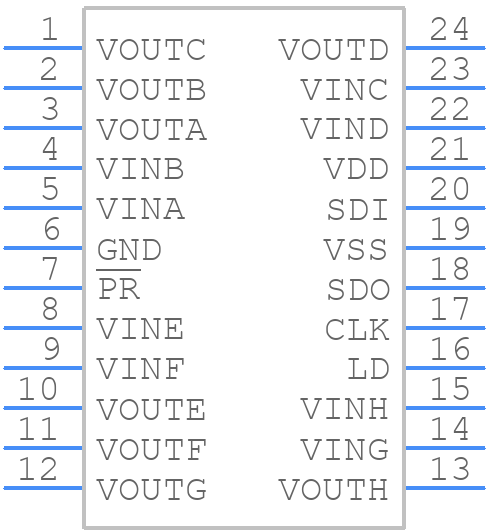

DAC8840FSZ - Analog Devices

DAC8840FSZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the DAC8840FSZ?
  The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
• How do I ensure accurate voltage output from the DAC8840FSZ?
  To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference (VREF) and to decouple the VREF pin with a capacitor to reduce noise. Additionally, the output voltage should be buffered with an op-amp to reduce load impedance effects.
• What is the maximum output current capability of the DAC8840FSZ?
  The maximum output current capability of the DAC8840FSZ is 10 mA. Exceeding this current limit can cause damage to the device or affect its accuracy.
• How do I handle the DAC8840FSZ's output glitch during power-up or code changes?
  To handle output glitches, it is recommended to use an external output buffer or op-amp with a slew-rate limiting capacitor to slow down the output transition. Additionally, consider using a power-up reset circuit or a glitch-reduction capacitor on the output pin.
• What is the recommended layout and routing for the DAC8840FSZ?
  To minimize noise and ensure accurate performance, it is recommended to use a star-ground topology, keep analog and digital signals separate, and use short, direct traces for the VREF and output pins. Additionally, consider using a ground plane and shielding to reduce electromagnetic interference.
