DALC112S1 - STMicroelectronics

Description: TVS Diode DALC112S1 Array 12 SOIC 8-Pin

Download DALC112S1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

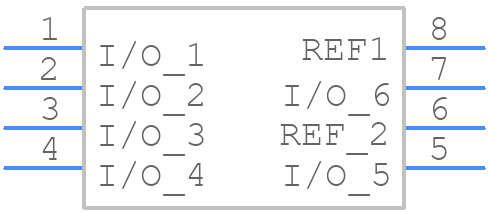

Symbol
DALC112S1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
DALC112S1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SO_
click to zoom
3D Models
DALC112S1 - STMicroelectronics - 3D model - Small Outline Packages - 8-Pin SO_
click to zoom

DALC112S1 Details

  • Manufacturer Part Number:

    DALC112S1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOD

  • Package Description:

    PLASTIC, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    VERY LOW CAPACITANCE

  • Configuration:

    COMPLEX, 6 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    1.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    12

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    18 V

  • Reverse Current-Max:

    2 µA

  • Reverse Test Voltage:

    18 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DALC112S1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
  • The input capacitor should be chosen based on the input voltage, current, and frequency. A general rule of thumb is to use a capacitor with a capacitance value between 1-10uF, and a voltage rating that exceeds the maximum input voltage. X7R or X5R ceramic capacitors are suitable options.
  • The maximum output current of the DALC112S1 is 1.2A, but it's essential to consider the thermal limitations and ensure proper heat sinking to prevent overheating.
  • Ensure the input voltage is within the recommended range (4.5-18V), and the ambient temperature is within the specified range (-40°C to 125°C). Also, follow the recommended PCB layout and thermal management guidelines to prevent overheating.
  • Yes, the DALC112S1 is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
