DAT-15R5A-PP+ - Mini-Circuits

Description: Attenuators 15.5 dB SMT Digital Step Attenuator, DC - 4000 MHz, 50O

Download DAT-15R5A-PP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

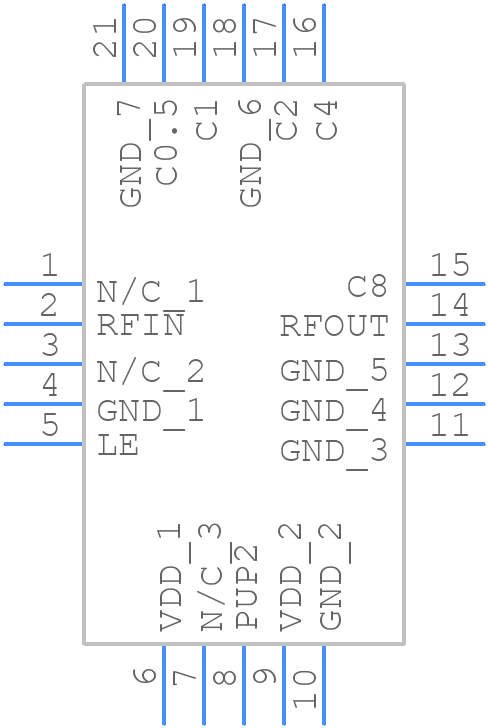

Symbol
DAT-15R5A-PP+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DAT-15R5A-PP+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DG983-2_2023
click to zoom
3D Models
DAT-15R5A-PP+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DG983-2_2023
click to zoom

DAT-15R5A-PP+ Details

  • Manufacturer Part Number:

    DAT-15R5A-PP+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Attenuation-Nom:

    15.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3 dB

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • VSWR-Max:

    1.9

DAT-15R5A-PP+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The DAT-15R5A-PP+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The maximum power handling of the DAT-15R5A-PP+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • The DAT-15R5A-PP+ is rated for operation up to 85°C. While it can tolerate high temperatures, prolonged exposure to temperatures above 85°C can affect its performance and reliability. If your application requires high-temperature operation, consider using a thermally enhanced package or a heat sink to maintain a safe operating temperature.
  • Common issues with the DAT-15R5A-PP+ include poor gain, high noise floor, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power supply connections. Ensure that the device is properly biased and that the input and output signals are within the specified range. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAT-15R5A-PP+ Overview

Use the download button to access the DAT-15R5A-PP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAT-1, or try a keyword search, such as RF/Microwave Attenuators

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
