DAT-31A-PP+ - Mini-Circuits

Description: Surface Mount Digital Step Attenuator DAT-31A+ Series 50Ω 0 to 31 dB, 1.0 dB Step DC to 4.0 GHz

Download DAT-31A-PP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

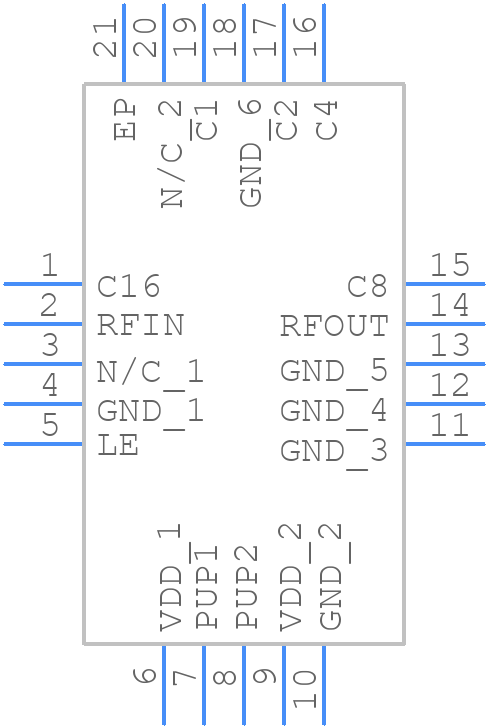

DAT-31A-PP+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DAT-31A-PP+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DAT-31A-PP+
click to zoom
3D Models
DAT-31A-PP+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DAT-31A-PP+
click to zoom

DAT-31A-PP+ Details

  • Manufacturer Part Number:

    DAT-31A-PP+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.8

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.9

DAT-31A-PP+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The DAT-31A-PP+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can also use Mini-Circuits' impedance matching tools and calculators to help with the design.
  • The DAT-31A-PP+ can handle up to +15 dBm of input power. Exceeding this limit may cause compression, distortion, or even damage to the device.
  • The DAT-31A-PP+ requires a positive voltage supply (Vcc) and a negative voltage supply (Vee). Typically, Vcc is +5V to +15V, and Vee is -5V to -15V. The recommended biasing circuit is shown in the datasheet.
  • The DAT-31A-PP+ operates from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper heat sinking and thermal management in your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAT-31A-PP+ Overview

Use the download button to access the DAT-31A-PP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAT-3, or try a keyword search, such as RF/Microwave Attenuators
