DAT-31R5A-PN+ footprint, schematic symbol and 3D model by Mini-Circuits

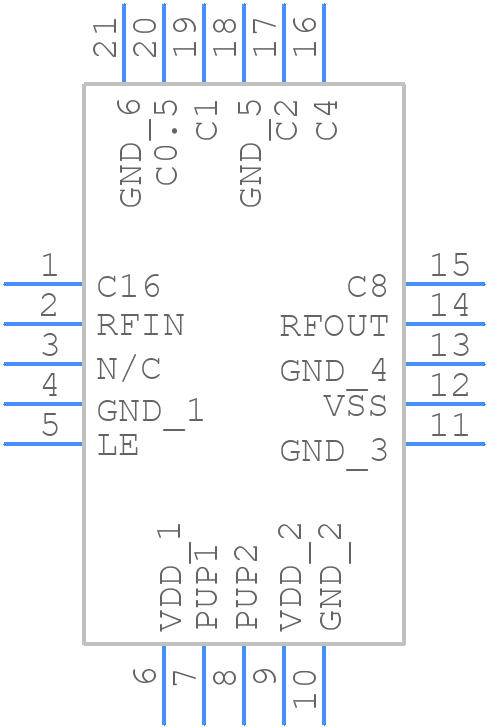

Symbol

click to zoom

PCB Footprints

DAT-31R5A-PN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-20-

click to zoom

3D Models

DAT-31R5A-PN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - QFN-20-

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DAT-31R5A-PN+
Part Number DAT-31R5A-PN+
Manufacturer Mini-Circuits
Pin Count 21
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN-20-
Released Date Nov 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DAT-31R5A-PN+ Details

Manufacturer Part Number:
DAT-31R5A-PN+
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
4 X 4 MM, ROHS COMPLIANT, PLASTIC, DG983-2, 20 PIN
ECCN Code:
EAR99
Manufacturer:
Mini-Circuits
YTEOL:
6.8
Attenuation-Nom:
31.5 dB
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
30 dBm
Insertion Loss-Max:
3 dB
Operating Frequency-Max:
4000 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
RF/Microwave Device Type:
VARIABLE ATTENUATOR
VSWR-Max:
1.9

DAT-31R5A-PN+ Frequently Asked Questions (FAQs)

Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
Impedance matching is critical for optimal performance. Mini-Circuits recommends using a 50-ohm system impedance. You can use the provided S-parameters in the datasheet to design a matching network or consult with a Mini-Circuits application engineer for guidance.
While the datasheet specifies an operating temperature range of 0°C to 70°C, it's essential to note that the amplifier can be operated safely up to 85°C with derated performance. However, it's recommended to consult with Mini-Circuits for specific guidance on operating temperature and derating factors.
While the DAT-31R5A-PN+ is a commercial-grade product, Mini-Circuits offers similar products with enhanced screening and testing for high-reliability and military applications. Consult with Mini-Circuits to determine the best solution for your specific requirements.
The typical noise figure of the DAT-31R5A-PN+ is around 3.5 dB, but it can vary with frequency. Consult the datasheet or contact Mini-Circuits for more detailed information on noise figure vs. frequency performance.

Trust Checks

Community Provided

System Verified

Community Approved

DAT-31R5A-PN+ Overview

Use the download button to access the DAT-31R5A-PN+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DAT-3, or try a keyword search, such as RF/Microwave Attenuators

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
