DAT-31R5A-PP+ - Mini-Circuits

Description: Attenuators 31.5 dB SMT Digital Step Attenuator, DC - 4000 MHz, 50 Ohm

Download DAT-31R5A-PP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

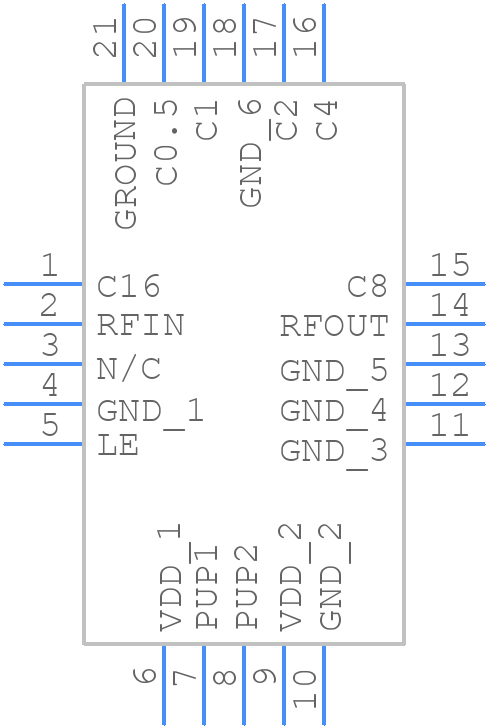

DAT-31R5A-PP+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DAT-31R5A-PP+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DG983-2_2021
click to zoom
3D Models
DAT-31R5A-PP+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DG983-2_2021
click to zoom

DAT-31R5A-PP+ Details

  • Manufacturer Part Number:

    DAT-31R5A-PP+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.8

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3 dB

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Gold/Palladium (Au/Pd) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.9

DAT-31R5A-PP+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The DAT-31R5A-PP+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer to design the matching network.
  • The DAT-31R5A-PP+ can handle up to +15 dBm of input power. Exceeding this limit may cause compression, distortion, or even damage to the device. Ensure your signal levels are within the recommended range to maintain optimal performance.
  • To minimize the noise figure, ensure the device is operated within its recommended temperature range and bias conditions. Additionally, use a low-noise voltage regulator and decouple the power supply lines to reduce noise injection. You can also consider using a noise-reducing amplifier or a low-noise amplifier stage before the DAT-31R5A-PP+.
  • The DAT-31R5A-PP+ is a commercial-grade component, but Mini-Circuits offers high-reliability screening options for certain applications. Contact Mini-Circuits directly to discuss your specific requirements and determine the best approach for your application.
