DAT-31R5A-SN+ - Mini-Circuits

Description: RF Attenuators 31.5dB 0 Hz ~ 4 GHz 50 Ohms 20-VFQFN Exposed Pad

Download DAT-31R5A-SN+ Model

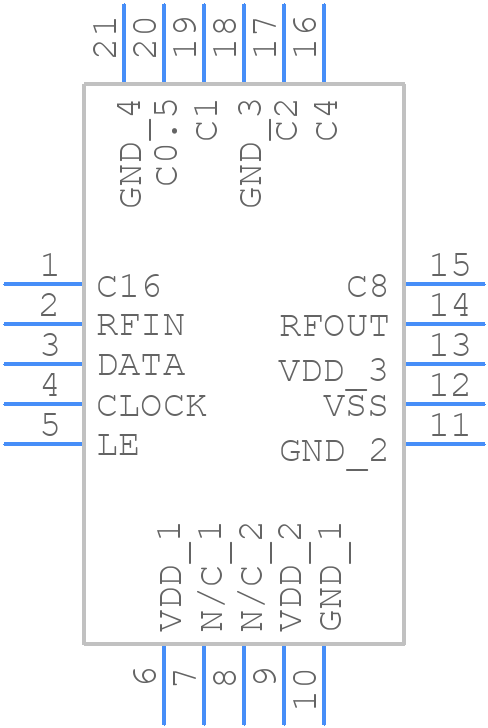

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DAT-31R5A-SN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-VFQFN
click to zoom
3D Models
DAT-31R5A-SN+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 20-VFQFN
click to zoom

DAT-31R5A-SN+ Details

  • Manufacturer Part Number:

    DAT-31R5A-SN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.8

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    0.1 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • VSWR-Max:

    1.9

DAT-31R5A-SN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The DAT-31R5A-SN+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design process.
  • The maximum power handling of the DAT-31R5A-SN+ is 1W. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified range to maintain the device's reliability and performance.
  • To reduce the noise figure of the DAT-31R5A-SN+, ensure that the input signal is strong and the input impedance is well-matched. Additionally, use a low-noise voltage regulator to power the device, and consider adding a noise-reducing component, such as a ferrite bead, to the power supply line.
  • The DAT-31R5A-SN+ is designed for high-frequency applications up to 4 GHz. However, its performance may degrade at higher frequencies. For applications above 4 GHz, consider using a more specialized amplifier or consulting with a Mini-Circuits application engineer.
