DB-5R5D105T - Elna

Description: Supercapacitors / Ultracapacitors MEM CAP 5.5V 1.0F

Download DB-5R5D105T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DB-5R5D105T - Elna - PCB symbol
click to zoom
PCB Footprints

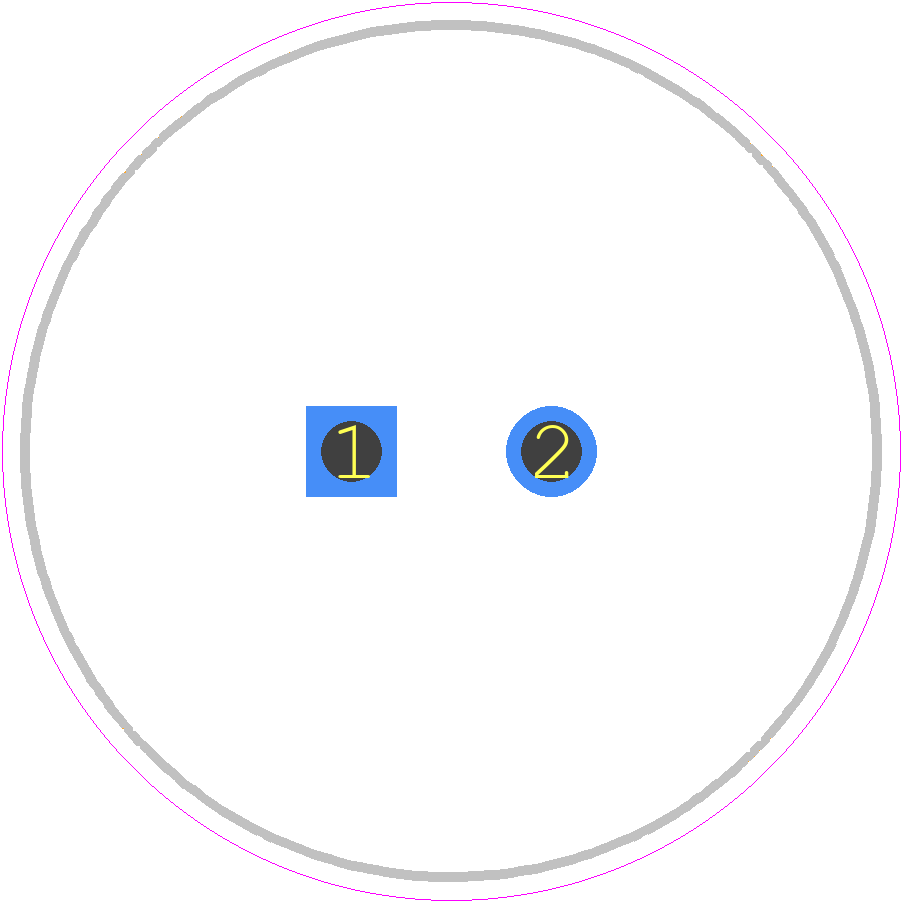

DB-5R5D105T - Elna PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - DB-5R5D105T_a
click to zoom
3D Models
DB-5R5D105T - Elna - 3D model - Capacitor, Polarized Radial Diameter - DB-5R5D105T_a
click to zoom

DB-5R5D105T Details

  • Manufacturer Part Number:

    DB-5R5D105T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    0

  • Capacitance:

    1000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    21.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

DB-5R5D105T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DB-5R5D105T is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the DB-5R5D105T capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The ESR of the DB-5R5D105T is approximately 0.5 ohms at 100 kHz.
  • Yes, the DB-5R5D105T is suitable for high-frequency applications up to 1 GHz due to its low equivalent series inductance (ESL) and high self-resonant frequency.
  • No, the DB-5R5D105T is a non-polarized capacitor, meaning it can be used in AC or DC circuits without worrying about polarity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DB-5R5D105T Overview

Use the download button to access the DB-5R5D105T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DB-5R, or try a keyword search, such as Special Capacitors
