DB-5R5D474T - Elna

Description: CAP 470MF -20% +80% 5.5V T/H

Download DB-5R5D474T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DB-5R5D474T - Elna - PCB symbol
click to zoom
PCB Footprints

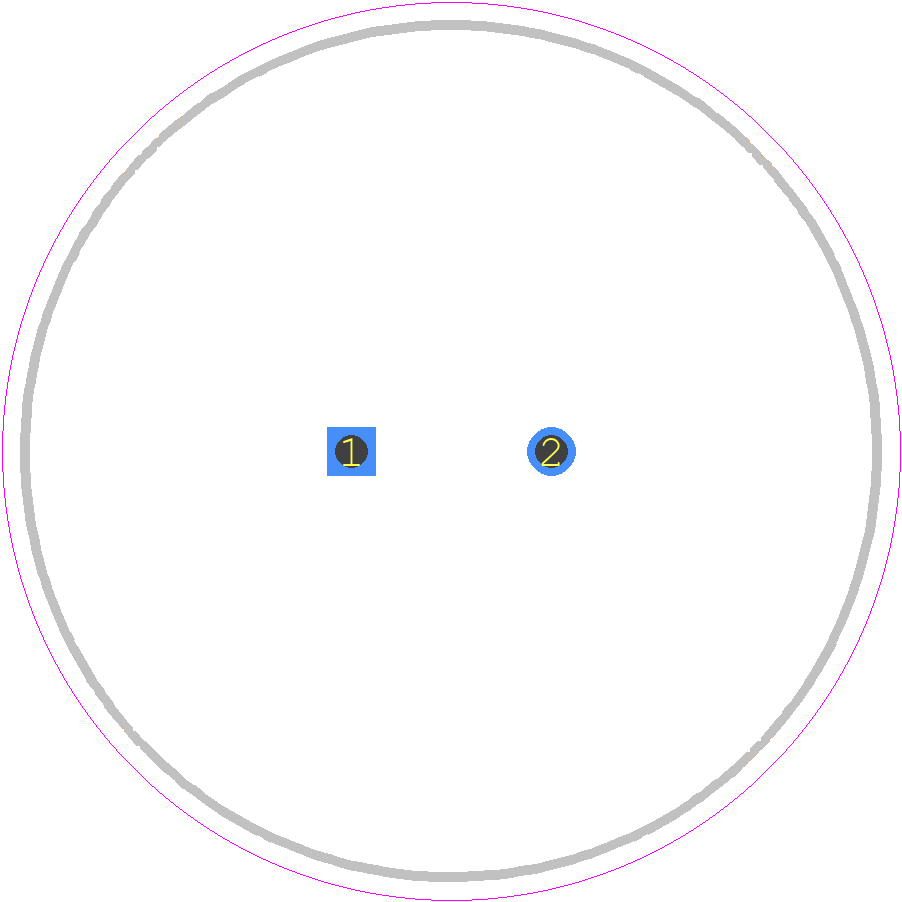

DB-5R5D474T - Elna PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 21.5X8
click to zoom
3D Models
DB-5R5D474T - Elna - 3D model - Capacitor, Polarized Radial Diameter - 21.5X8
click to zoom

DB-5R5D474T Details

  • Manufacturer Part Number:

    DB-5R5D474T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    0

  • Capacitance:

    470000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    21.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CIRCULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

DB-5R5D474T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less to prevent damage to the capacitor.
  • Yes, the DB-5R5D474T is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, but it's recommended to consult with ELNA America Inc for specific vibration requirements.
  • The DB-5R5D474T is designed to operate in humid environments, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity level (MSL) 2, which requires baking the components at 125°C for 24 hours before use.
  • The ESR of DB-5R5D474T is typically around 50 mΩ at 100 kHz, but it's recommended to consult the datasheet or contact ELNA America Inc for specific ESR values.
  • Yes, the DB-5R5D474T is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and environmentally friendly components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DB-5R5D474T Overview

Use the download button to access the DB-5R5D474T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DB-5R, or try a keyword search, such as Special Capacitors
