DB5U307W35050HA - SAMWHA

Description: Capacitor: electrolytic; backup capacitor,supercapacitor; 300F

Download DB5U307W35050HA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DB5U307W35050HA - SAMWHA - PCB symbol
click to zoom
PCB Footprints

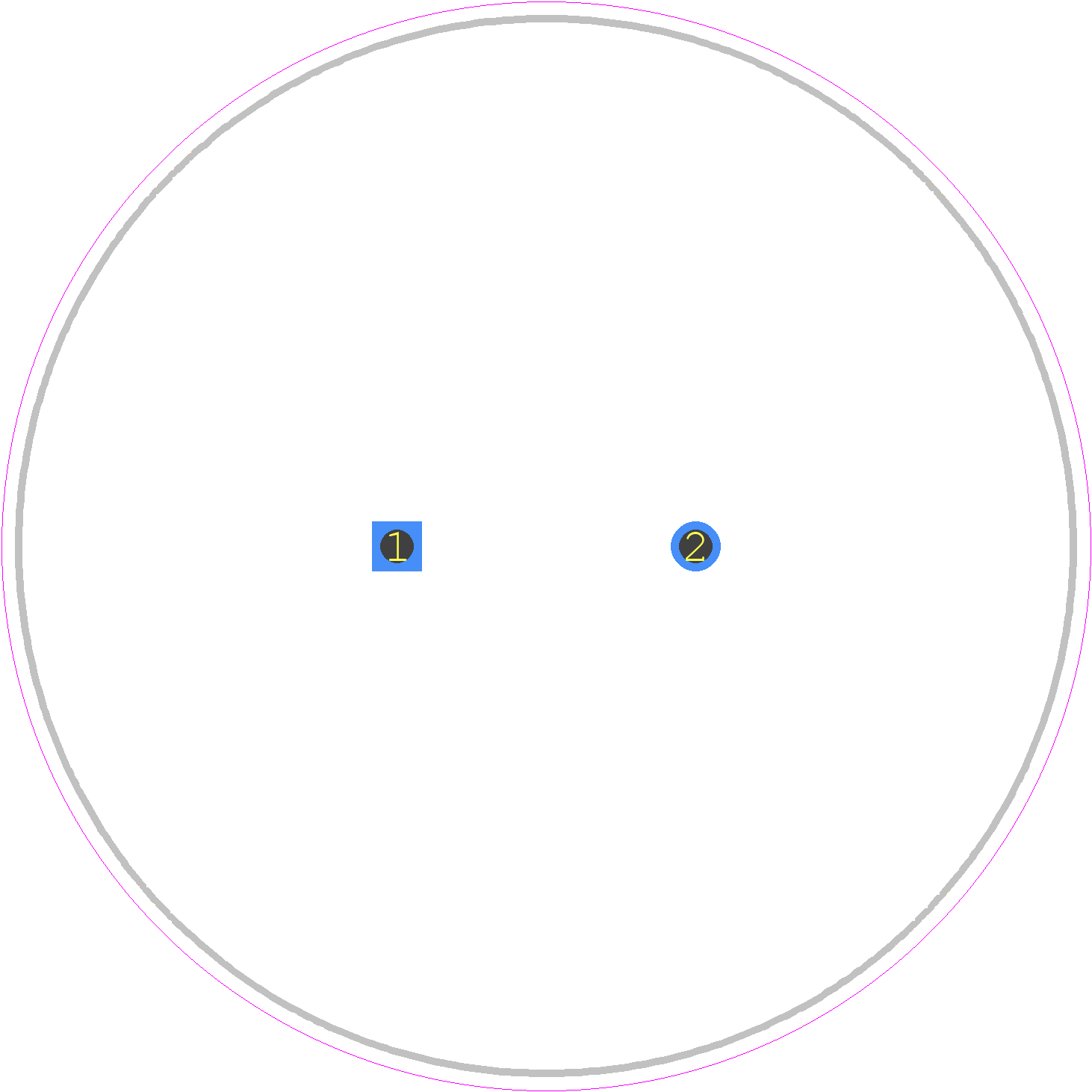

DB5U307W35050HA - SAMWHA PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35 x 50_1
click to zoom
3D Models
DB5U307W35050HA - SAMWHA - 3D model - Capacitor, Polarized Radial Diameter - 35 x 50_1
click to zoom

DB5U307W35050HA Details

  • Manufacturer Part Number:

    DB5U307W35050HA

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Samwha Electronics

  • YTEOL:

    7

  • Capacitance:

    300000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Reference Standard:

    UL

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

DB5U307W35050HA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the DB5U307W35050HA is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 30G.
  • The DB5U307W35050HA has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture and humidity up to 30°C (86°F) and 60% relative humidity for 192 hours.
  • The ESR of the DB5U307W35050HA is typically around 30-40 mΩ at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the DB5U307W35050HA is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in EU and other regions with similar regulations.
