The recommended land pattern for DB6J316K0R is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
To handle thermal management, ensure good thermal conductivity between the DB6J316K0R and the PCB. Use a thermal pad or thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Also, consider using a heat sink or a metal core PCB to dissipate heat efficiently.
The maximum operating temperature range for DB6J316K0R is -40°C to 125°C. However, it's recommended to operate the device within the specified temperature range to ensure reliable performance and prevent degradation.
Yes, DB6J316K0R is designed to withstand vibrations. However, it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mounting system to minimize the impact of vibrations.
To prevent moisture-related issues, store DB6J316K0R in a dry environment with a relative humidity of 60% or less. Avoid exposing the device to moisture, and use a moisture barrier bag or desiccant to store the components. Also, follow proper soldering and cleaning procedures to prevent moisture ingress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DB6J316K0R Overview

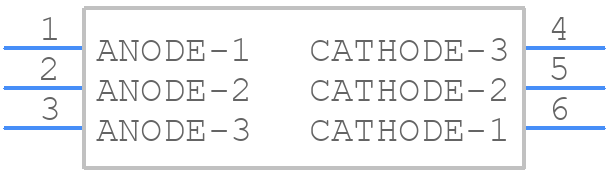

Use the download button to access the DB6J316K0R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DB6J3,
or try a keyword search, such as Microwave Mixer Diodes
