DBN-5R5D155T - Elna

Description: Supercapacitors / Ultracapacitors 1.5F 5.5V Low Resistance

Download DBN-5R5D155T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DBN-5R5D155T - Elna - PCB symbol
click to zoom
PCB Footprints

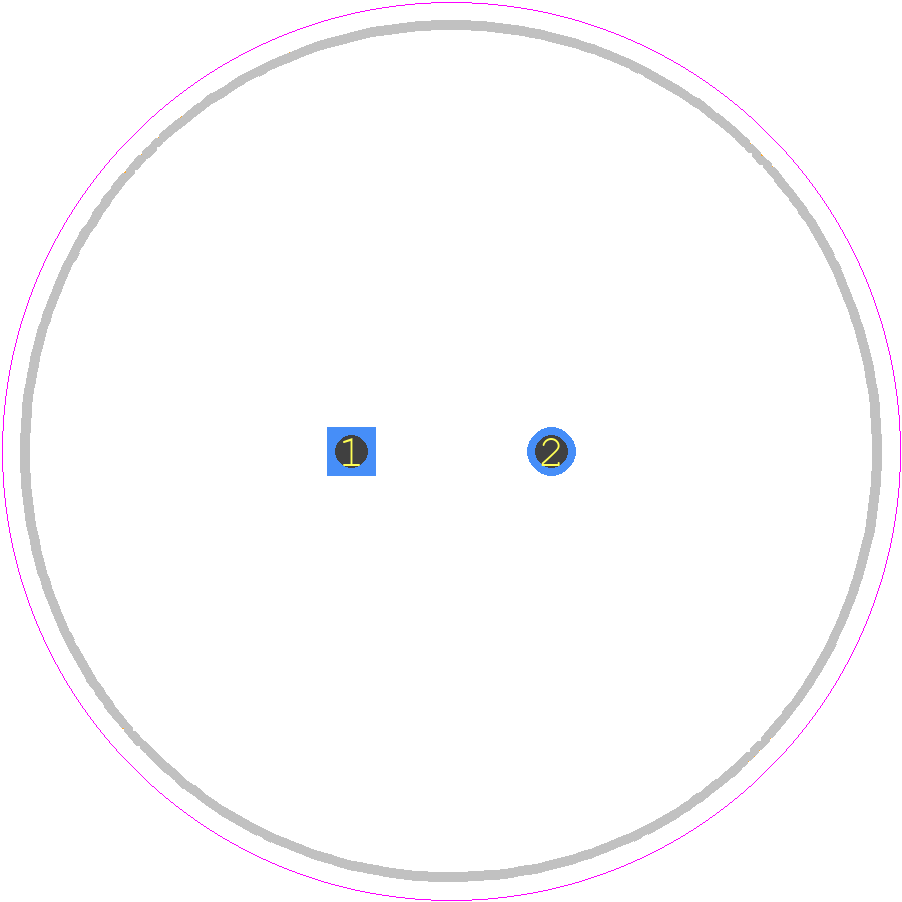

DBN-5R5D155T - Elna PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - DBN-5R5D155T
click to zoom
3D Models
DBN-5R5D155T - Elna - 3D model - Capacitor, Polarized Radial Diameter - DBN-5R5D155T
click to zoom

DBN-5R5D155T Details

  • Manufacturer Part Number:

    DBN-5R5D155T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    0

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Dielectric Material:

    ACTIVATED CARBON

DBN-5R5D155T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the DBN-5R5D155T capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for environmentally friendly products.
  • The ESR of the DBN-5R5D155T capacitor is typically around 0.015 ohms at 100 kHz, but this value may vary depending on the frequency and operating conditions.
  • Yes, the DBN-5R5D155T capacitor is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the DBN-5R5D155T capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DBN-5R5D155T Overview

Use the download button to access the DBN-5R5D155T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DBN-5, or try a keyword search, such as Special Capacitors
