DBS700B24 - Cosel

Description: Cosel 696W Isolated DC-DC Converter, Vin 200 → 400 V, Vout 24V, I/O isolation 3000V

Download DBS700B24 Model

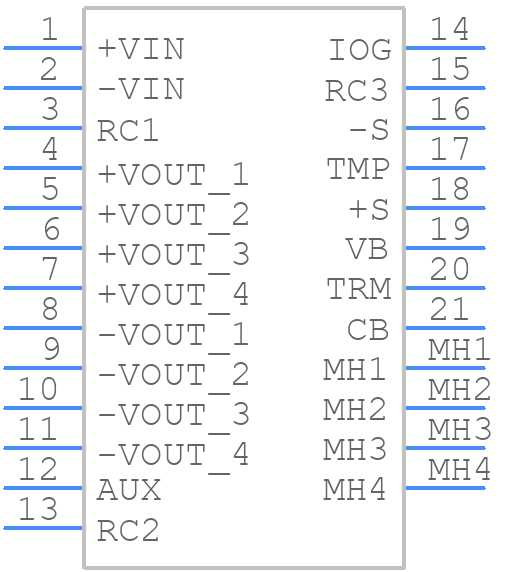

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

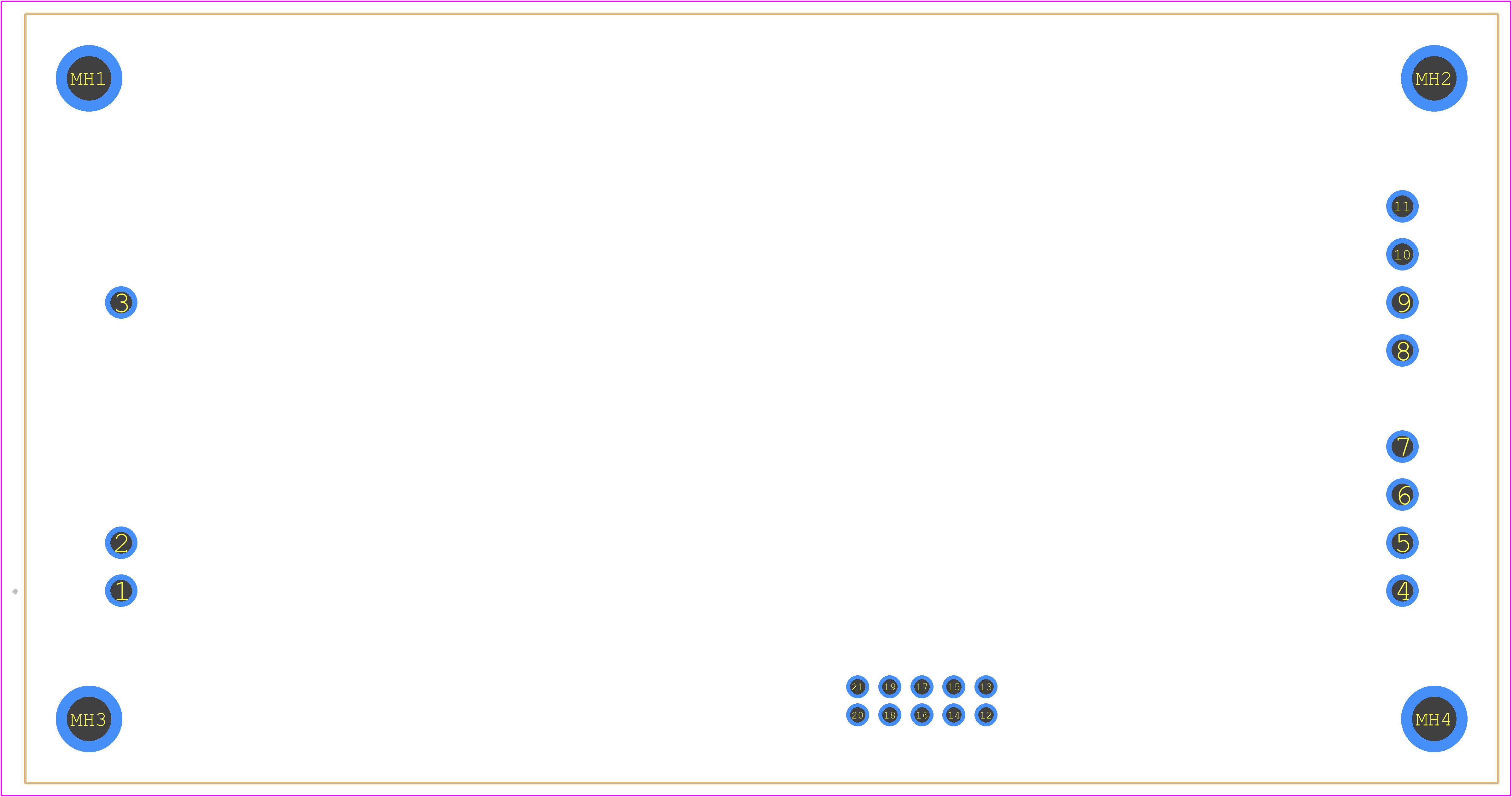

DBS700B24 - Cosel PCB footprint - Other - Other - DBS700B24
click to zoom
3D Models
DBS700B24 - Cosel  - 3D model - Other - DBS700B24
click to zoom

DBS700B24 Details

  • Manufacturer Part Number:

    DBS700B24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    400 V

  • Input Voltage-Min:

    200 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    21

  • Output Current-Max:

    29 A

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,21LEAD,4.0

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    696 W

DBS700B24 Frequently Asked Questions (FAQs)

  • Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow with nearby components.
  • Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Ensure cables are properly routed and terminated to minimize emissions.
  • Derating curves are available upon request from Cosel. Apply the curves by reducing the output power or input voltage according to the temperature and altitude derating factors provided.
  • Yes, but consult with Cosel's application engineers to ensure proper design and implementation. Redundancy and parallel operation require careful consideration of synchronization, current sharing, and fault tolerance.
  • Consult the troubleshooting guide provided by Cosel. Perform visual inspections, check input and output voltages, and monitor the converter's status pins. Use an oscilloscope to analyze waveforms and identify potential issues.
