DBT71210F-HR - Cynergy3

DBT71210F-HR Details

• Manufacturer Part Number:

  DBT71210F-HR

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Cynergy3 Components

• Additional Feature:

  WITH FLYING LEADS

• Body Breadth:

  15.8 mm

• Body Height:

  18.5 mm

• Body Length or Diameter:

  60 mm

• Coil Current(DC)-Max:

  0.05 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  600 mW

• Coil Release Voltage(DC):

  1.25 V

• Coil Resistance:

  240 Ω

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  2A@7000VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  2 A

• Contact (DC) Max Rating R Load:

  2A@7000VDC

• Contact Resistance:

  250 mΩ

• Contact Voltage(AC)-Max:

  7000 V

• Contact Voltage(DC)-Max:

  7000 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  1000000 Cycle(s)

• End Contact Material:

  TUNGSTEN

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000000000 Ω

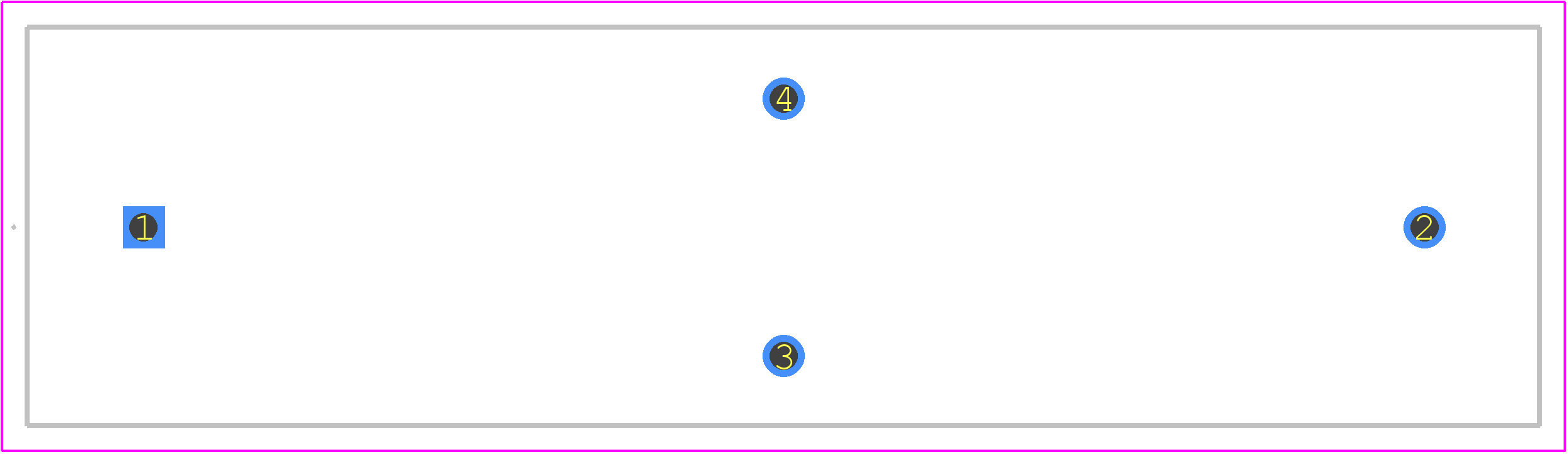

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  6

• Operate Time:

  2 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• Physical Dimension:

  60mm x 15.8mm x 18.5mm

• Relay Action:

  BBM

• Relay Form:

  1 FORM B

• Relay Function:

  SPST

• Relay Type:

  DRY REED RELAY

• Release Time:

  3 ms

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
