DBTC-10-13+ - Mini-Circuits

Description: RF Directional Coupler Cellular 5MHz ~ 1GHz 10.3 ± 0.5dB 1W 5-SMD Module

Download DBTC-10-13+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

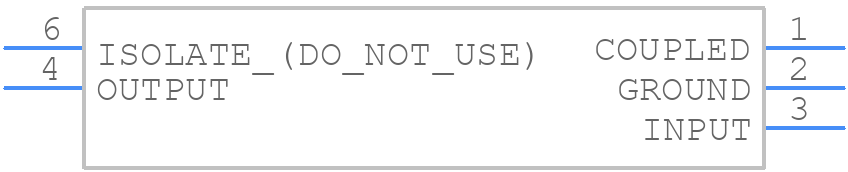

DBTC-10-13+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DBTC-10-13+ - Mini-Circuits PCB footprint - Other - Other - AT790-1_2025-2
click to zoom
3D Models
DBTC-10-13+ - Mini-Circuits - 3D model - Other - AT790-1_2025-2
click to zoom

DBTC-10-13+ Details

  • Manufacturer Part Number:

    DBTC-10-13+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    2 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.6

DBTC-10-13+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The DBTC-10-13+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
  • The DBTC-10-13+ is designed to operate with a 50Ω input and output impedance. To achieve optimal performance, it's recommended to match the input and output impedance to 50Ω using impedance matching networks or transmission lines.
  • The DBTC-10-13+ is sensitive to ESD. To protect the device, it's essential to handle it with ESD-safe materials, use ESD protection devices such as diodes or resistors, and follow proper ESD handling procedures during assembly and testing.
  • While the datasheet specifies a frequency range of 10 MHz to 13 GHz, the device can operate beyond this range with some degradation in performance. However, it's recommended to consult with Mini-Circuits' application engineers for specific guidance on operating the device beyond the specified frequency range.
